(710131140) - (DIA KIT) STANDARD FUEL TANK SHIELD PROTECTION

Запчасти Case IH JX1095C (710131140) - (DIA KIT) STANDARD FUEL TANK SHIELD PROTECTION (18) - VARIATIONS

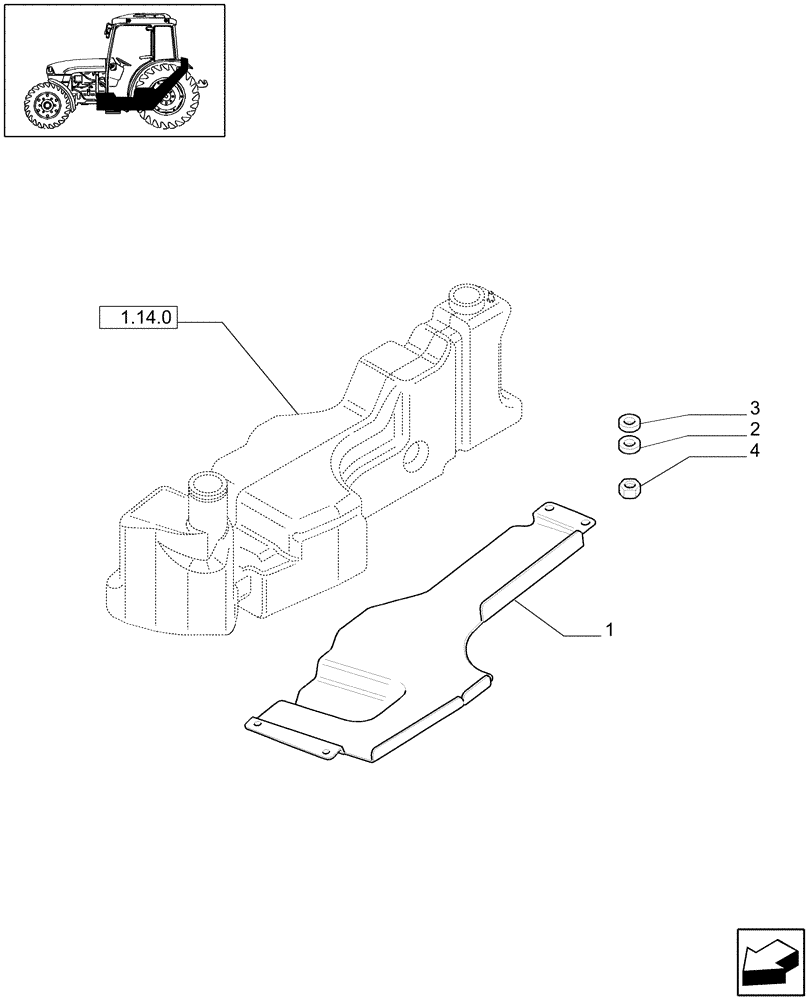

Схема запчастей Case IH JX1095C - (710131140) - (DIA KIT) STANDARD FUEL TANK SHIELD PROTECTION (18) - VARIATIONS
4
3
1
2
1.14.0
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87607800

PLATE

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

3

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

4шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.
