(1.92.92[05]) - CAB GLASS AND RELEVANT PARTS

Запчасти Case IH JX1095C (1.92.92[05]) - CAB GLASS AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB

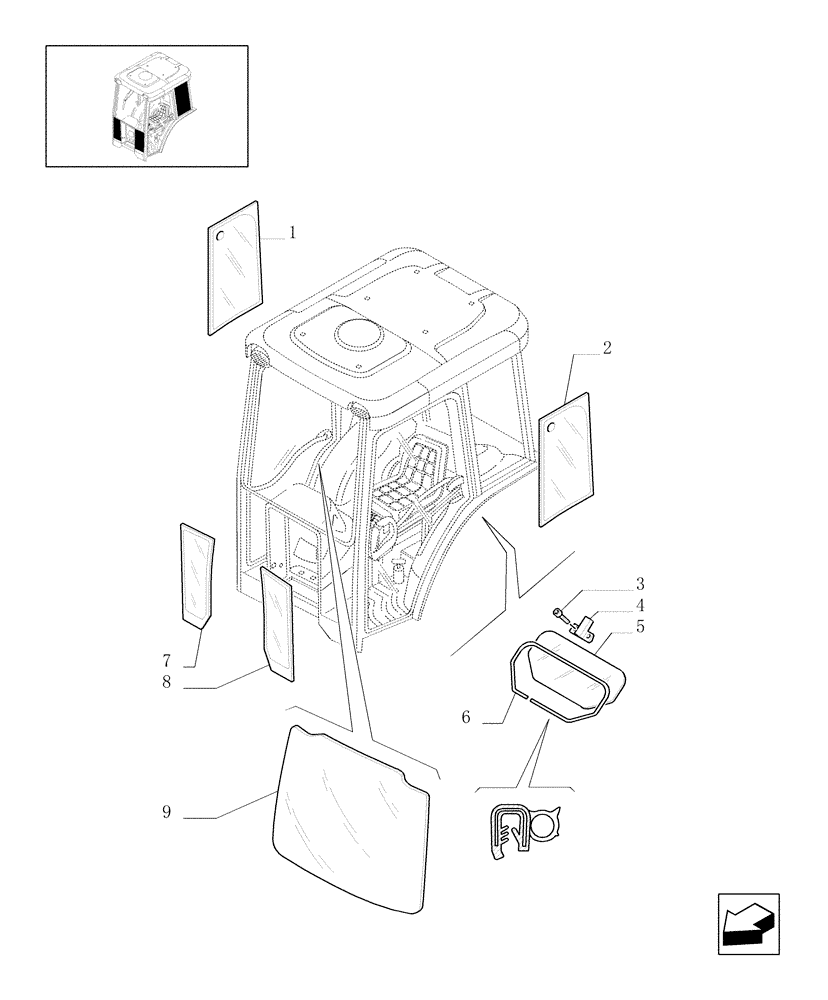

Схема запчастей Case IH JX1095C - (1.92.92[05]) - CAB GLASS AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB
7
3
1
9
4
6
8
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47130822

CAB GLASS ASSY

RH

1шт.

2

47130823

CAB GLASS ASSY

LH

1шт.

3

15909407

SELF-TAP SCREW,Pozidriv Oval Hd, M3.5 x 1.3 x 19mm

4шт.

4

47135663

BLOCK

2шт.

5

44911518

CAB GLASS ASSY

Lower Rear

1шт.

6

5183309

SEAL

1шт.

7

44911514

CAB GLASS ASSY

RH

1шт.

8

44911515

CAB GLASS ASSY

LH

1шт.

9

44911513

CAB GLASS ASSY

1шт.
