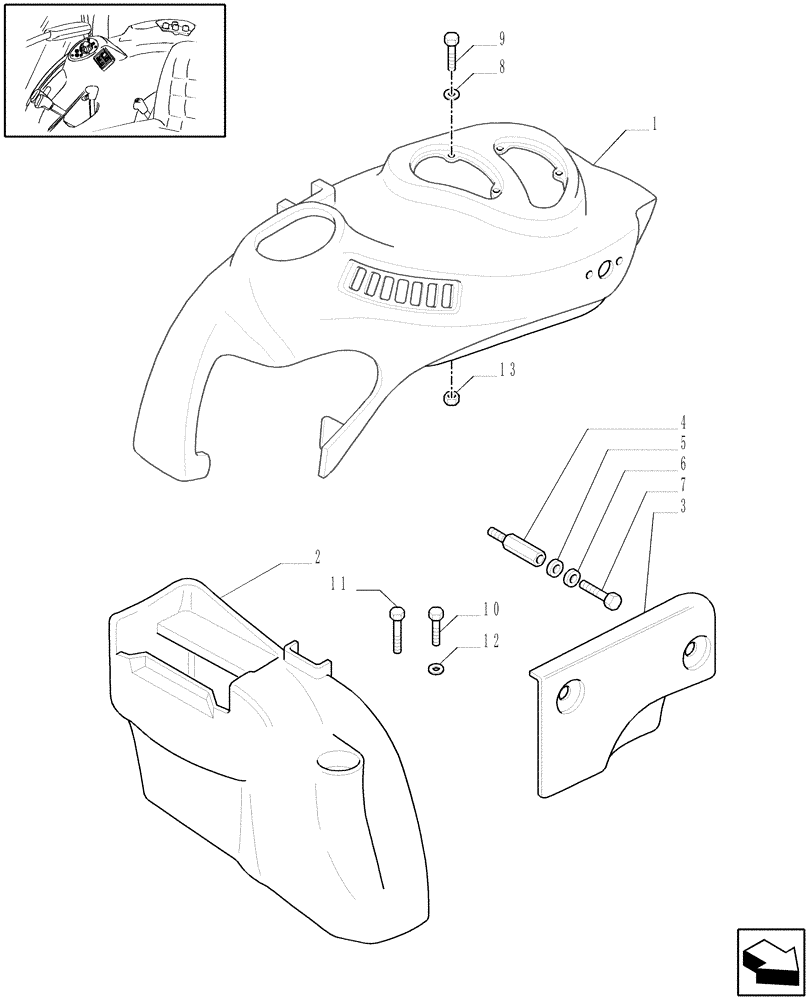

Запчасти Case IH JX1095C (1.92.88/04) - (VAR.839) FRONT PTO LIFT FOR EDC - COVERINGS (10) - OPERATORS PLATFORM/CAB

1

87304666

COVER

, Serial Range: -C5727

1шт.

1

87623614

COVER

RH, Start Serial: D5727

1шт.

2

87304678

COVER

, Serial Range: -C5727

1шт.

2

87623616

COVER

LH, Start Serial: D5727

1шт.

3

47128695

COVER

1шт.

4

47128696

SPACER

1шт.

5

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

6

12648201

WASHER,6.15mm ID x 10mm OD x 1mm Thk

1шт.

7

10902431

SCREW,Hex, M6 x 20mm, Cl 10.9

1шт.

8

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

, Start Serial: D5727

8шт.

9

14304824

HEX SOC SCREW,M6 x 55mm, Cl 8.8

, Start Serial: D5727

4шт.

10

14303934

SCREW,M6 x 70mm

, Start Serial: D5727

2шт.

11

14305924

SCREW,M6 x 45mm

, Start Serial: D5727

2шт.

12

11195574

BELLEVILLE WASHER,M6 Bolt Size x 24mm OD x 1.5mm Thk

, Start Serial: D5727

8шт.

13

12574211

NUT,M6 x 1, Cl 8

, Start Serial: D5727

8шт.
