Запчасти Case IH JX1095C (1.92.85) - SEAT (10) - OPERATORS PLATFORM/CAB

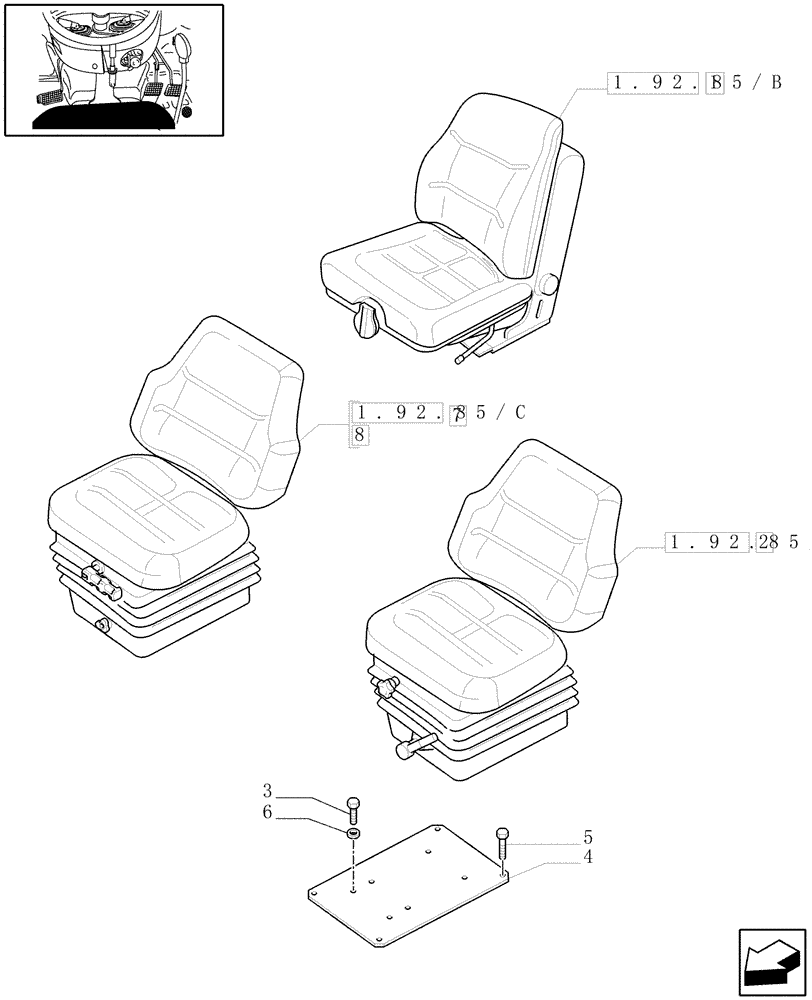

Схема запчастей Case IH JX1095C - (1.92.85) - SEAT (10) - OPERATORS PLATFORM/CAB
1.92.85/b
8
6
7
1
1.92.85/c
2
3
1.92.85/a
5
4

Артикул

Название

Примечание

Количество

1

47129032

DRIVER SEAT

ASSY, STD, Serial Range: -C5798

1шт.

MT SC78M30, Mech. Suspension WHEAT (STD)

1шт.

1

87730612

DRIVER SEAT

ASSY, STD, Start Serial: D5798

1шт.

MT SC88M30, Mech. Suspension WHEAT (STD)

1шт.

With Increased Seat Back and Cushion

1шт.

2

47129027

DRIVER SEAT

ASSY, VAR.090, Serial Range: -C5644

1шт.

MT SC78M91, Mech. Suspension CASE Fabric

1шт.

3

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

M8x1.25x22, VAR.090

4шт.

4

5180356

PLATE

VAR.090

1шт.

5

14441927

SCREW,FLAT, M8 x 16mm, Cl 8.8

VAR.090

4шт.

6

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8x16x1.9, VAR.090

4шт.

7

87553346

DRIVER SEAT

ASSY, VAR.090, Serial Range: D5644-C5798

1шт.

MT SC78M200, Mech. Suspension CASE Fabric

1шт.

7

87730591

DRIVER SEAT

VAR.090, Serial Range: D5798-C6330

1шт.

With Increased Seat Back and Cushion

1шт.

MT SC88M200, Mech. Suspension CASE Fabric

1шт.

8

84164859

DRIVER SEAT

ASSY, VAR.090, Start Serial: D6330

1шт.

With Increased Seat Back and Cushion

1шт.

MT SC88M200, Mech. Suspension CASE Fabric

1шт.

Выбрано товаров: 19
