Запчасти Case IH JX1095C (1.92.75/08[01A]) - (VAR.070-072) 24X12 (40KM/H) W/HI-LO, W/POWER SHUTT. AND OIL COOL. FOR CAB - ELECTRIC CABLES - D5366 (10) - OPERATORS PLATFORM/CAB

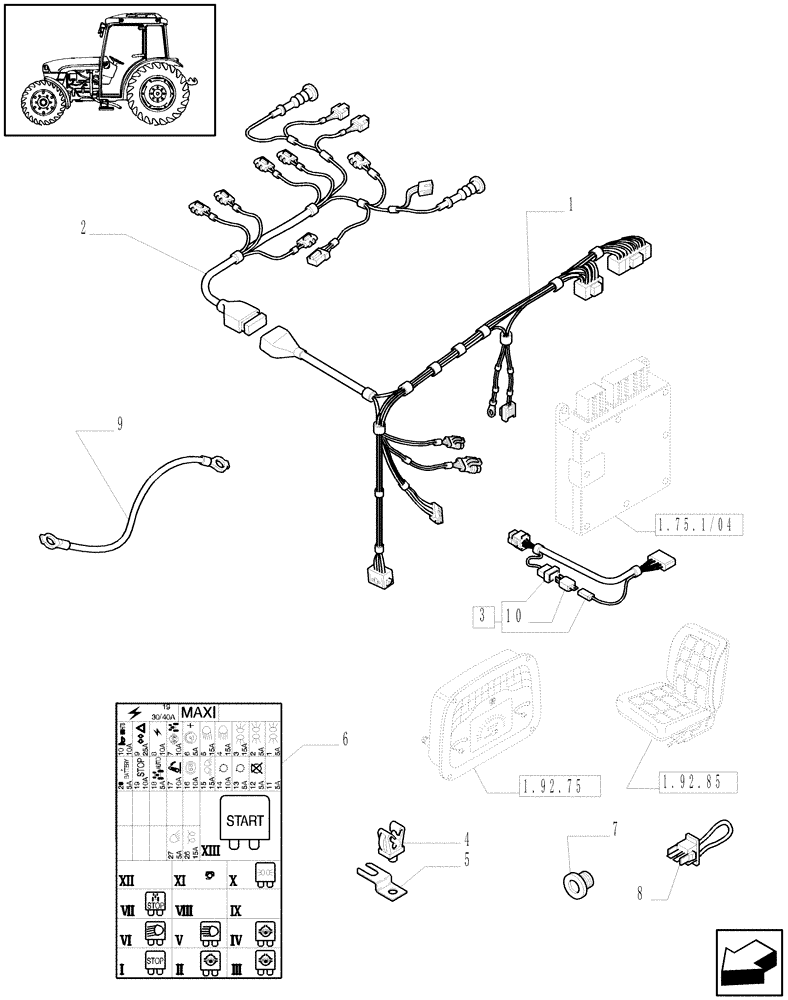

Схема запчастей Case IH JX1095C - (1.92.75/08[01A]) - (VAR.070-072) 24X12 (40KM/H) W/HI-LO, W/POWER SHUTT. AND OIL COOL. FOR CAB - ELECTRIC CABLES - D5366 (10) - OPERATORS PLATFORM/CAB
5
1
1.75.1/04
9
6
4
1.92.85
8
3
1.92.75
2
10
7

Артикул

Название

Примечание

Количество

1

87530947

ELECTRIC CABLE

Power Shuttle Dashboard

1шт.

2

47134765

ELECTRIC CABLE

Power Shuttle Transmission

1шт.

3

5188081

WIRE HARNESS

Seat Safety Circuit Harness

1шт.

4

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

5шт.

5

5120229

PLATE

2шт.

6

47129973

DECAL

Fuse

1шт.

7

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

8

5187976

BRIDGE

C11

1шт.

9

87309787

ELECTRIC CABLE

Ground

1шт.

10

83929594

DIODE

1шт.

Выбрано товаров: 10
