(1.92.75/05) - (VAR.066-464) 12X12 (40KM/H) TRANS. W/SYNCH. GEAR, W/P.SHUTTLE & OIL COOLER FOR CAB. - ELEC. CABLES

Запчасти Case IH JX1095C (1.92.75/05) - (VAR.066-464) 12X12 (40KM/H) TRANS. W/SYNCH. GEAR, W/P.SHUTTLE & OIL COOLER FOR CAB. - ELEC. CABLES (10) - OPERATORS PLATFORM/CAB

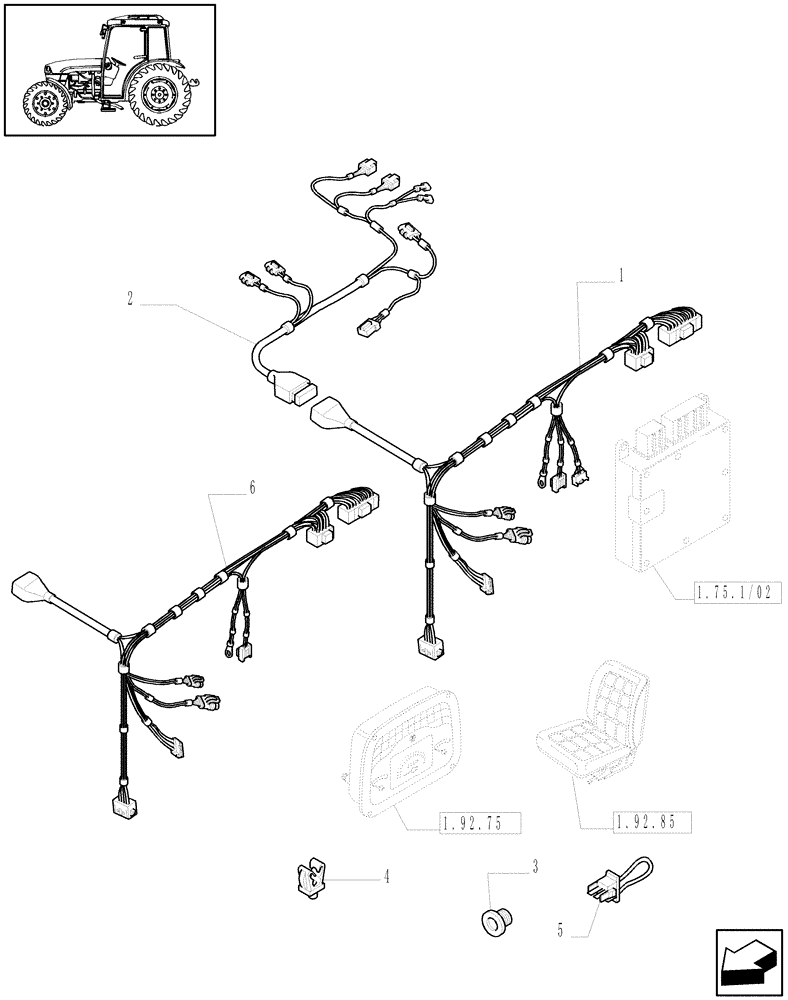

Схема запчастей Case IH JX1095C - (1.92.75/05) - (VAR.066-464) 12X12 (40KM/H) TRANS. W/SYNCH. GEAR, W/P.SHUTTLE & OIL COOLER FOR CAB. - ELEC. CABLES (10) - OPERATORS PLATFORM/CAB
5
3
1
6
1.92.75
2
1.92.85
4
1.75.1/02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47134764

ELECTRIC CABLE

Power Shuttle Dashboard, Serial Range: -HJH076230

1шт.

2

47134766

ELECTRIC CABLE

Power Shuttle Transmission, VAR.464

1шт.

3

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

4

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

VAR.464

2шт.

5

5187976

BRIDGE

VAR.464

1шт.

6

87530950

ELECTRIC CABLE

Power Shuttle Dashboard, Start Serial: HJH076231

1шт.

Выбрано товаров: 6
