Запчасти Case IH JX1095C (1.92.75[02]) - ELECTRIC CONTROLS - L/CAB (10) - OPERATORS PLATFORM/CAB

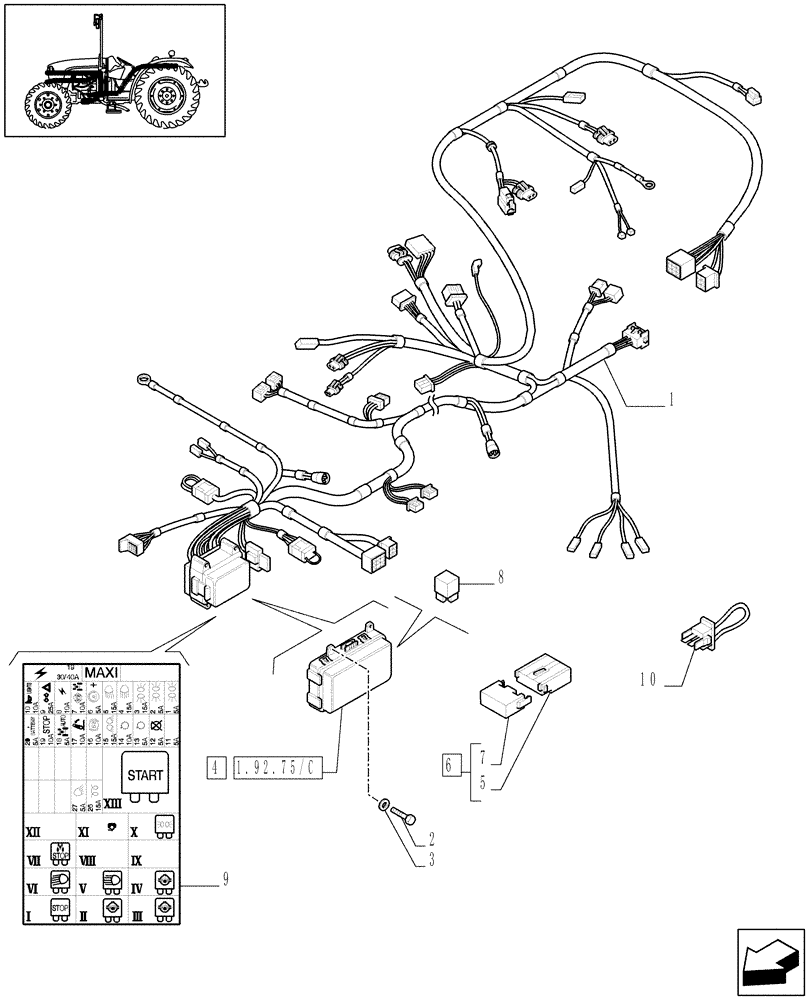

Схема запчастей Case IH JX1095C - (1.92.75[02]) - ELECTRIC CONTROLS - L/CAB (10) - OPERATORS PLATFORM/CAB
7
1
3
9
6
8
1.92.75/c
10
5
2
4

Артикул

Название

Примечание

Количество

1

87528603

ELECTRIC CABLE

MAIN, 2WD, JX1085C, Start Serial: HJH076231

1шт.

1

87528606

ELECTRIC CABLE

MAIN, 4WD, JX1095C, Start Serial: HJH076231

1шт.

1

47134743

ELECTRIC CABLE

Main, 2WD, JX1085C, Serial Range: -HJH076230

1шт.

1

47134745

ELECTRIC CABLE

Main, 4WD, JX1095C, Serial Range: -HJH076230

1шт.

2

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

4шт.

3

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

4

5198692

FUSE HOLDER

1шт.

5

5173266

FUSE HOLDER

1шт.

6

5176999

COVER

1шт.

7

5173265

COVER

1шт.

8

10395890

FUSE,5A, Mini, Beige

5A

9шт.

8

87522597

FUSE,10A, Mini, Red

10A

6шт.

8

87524877

FUSE,15A, Mini, Blue

15A

4шт.

8

10401290

FUSE,25 amp Mini

25A

1шт.

8

5171084

RELAY,12V, 20A, N.C.

12V-20A

1шт.

9

47129973

DECAL

1шт.

10

5189713

JUMPER

C18

1шт.

10

47125756

JUMPER

C21, Serial Range: -HJH076230

1шт.

10

87371844

ELECTRIC CABLE

C21, Start Serial: HJH076231

1шт.

Выбрано товаров: 19
