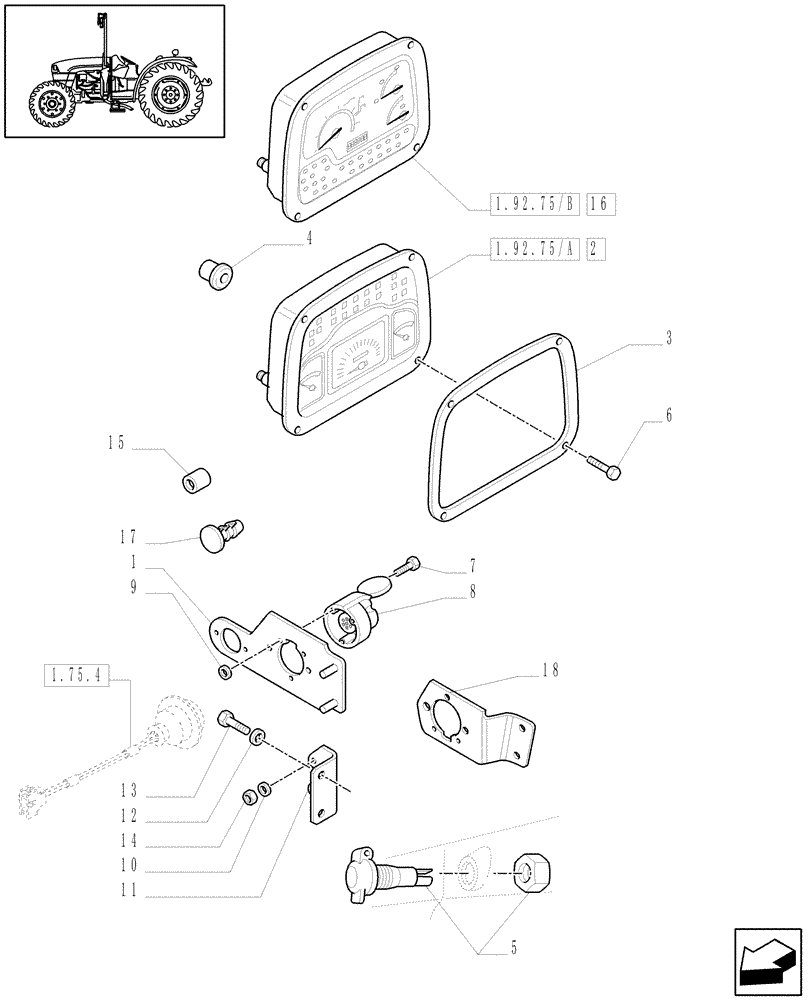

Запчасти Case IH JX1095C (1.92.75[01]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB

1

5194519

BRACKET

L/Cab

1шт.

2

47137571

INSTRUMENT PANEL

ASSY

1шт.

3

5175371

GASKET,3mm Thk

1шт.

4

5183270

PLUG

W/Cab

1шт.

5

82002966

POWER SOCKET,M18 x 1

1шт.

6

5180363

HEX SOC SCREW,M4 x 0.7 x 25mm, Cl 8.8

4шт.

7

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

L/Cab

3шт.

8

5102156

MULTIPOLE CONNECTOR,Female, 7 Pole

12V

1шт.

9

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

L/Cab

3шт.

10

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

L/Cab

2шт.

11

5183206

SUPPORT

L/Cab

1шт.

12

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

L/Cab

2шт.

13

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

L/Cab

2шт.

14

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

L/Cab

2шт.

15

15811787

COVER

17x10.5, L/Cab, Serial Range: -C5548

1шт.

16

87355434

MEASURING INSTRUMENT

, Start Serial: HJH076231

1шт.

17

14592587

BUTTON,Button, M6.50 x 3.50mm

, Start Serial: D5548

3шт.

18

5197362

BRACKET

W/Cab

1шт.
