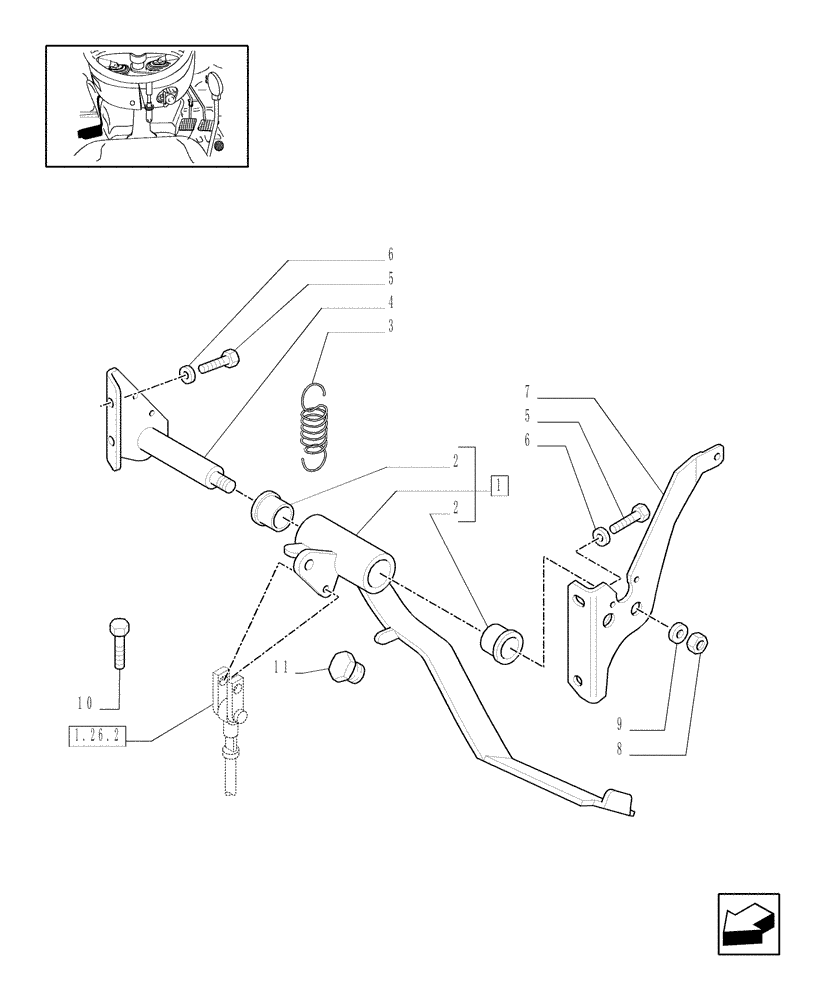

Запчасти Case IH JX1095C (1.92.26[01]) - CLUTCH PEDAL (10) - OPERATORS PLATFORM/CAB

1

5174884

PEDAL

ASSY

1шт.

2

5188075

BUSHING,22mm ID x 26.27mm OD x 26mm L

2шт.

3

5171160

SPRING

1шт.

4

47130713

SUPPORT

RH

1шт.

5

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

4шт.

7

47130711

SUPPORT

LH

1шт.

8

16101524

NUT,M12 x 1.25, Cl 10

1шт.

9

11190879

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD

1шт.

10

43362

NUT,M8 x 1.25, Cl 10

1шт.

11

5179011

PLUG,Hex, M32 x 2

1шт.
