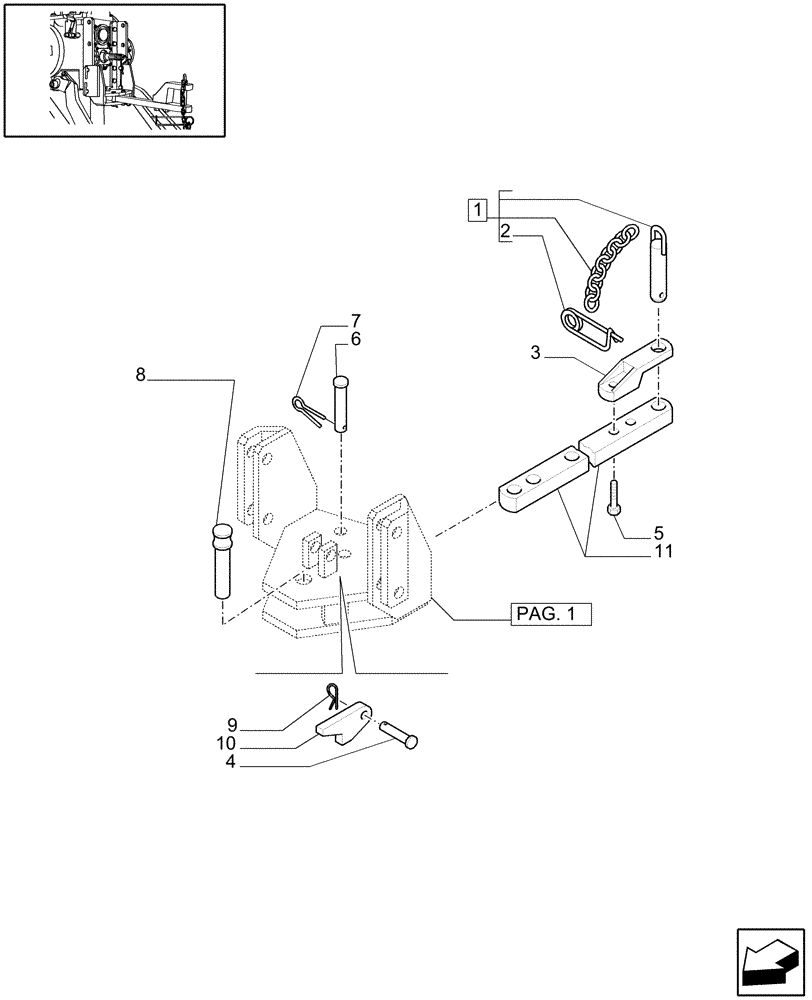

Запчасти Case IH JX1095C (1.89.3/09[02]) - (VAR.906) SUPPORT AND DRAWBAR CATEGORY "C" TOW HOOK - PARTS (09) - IMPLEMENT LIFT

1

5162713

HITCH PIN,28mm OD x 711.5mm L

D=29

1шт.

2

5152004

HAIR PIN COTTER,195mm L

1шт.

3

5135330

TRACK ROD END ASSY

D=29

1шт.

4

5130620

PIN,10mm OD x 34mm L

1шт.

5

15984534

BOLT,Hex, M18 x 1.5 x 65mm, Cl 10.9

2шт.

6

5176972

PIN,18mm OD x 82mm L

71 MM

2шт.

7

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

8

5176981

PIN,28mm OD x 104mm L

1шт.

9

10796401

COTTER PIN,M3.2 x 18

1шт.

10

5130621

LEVER

1шт.

11

5176971

DRAWBAR,641mm L x 60mm W x 30mm Thk

D=29

1шт.
