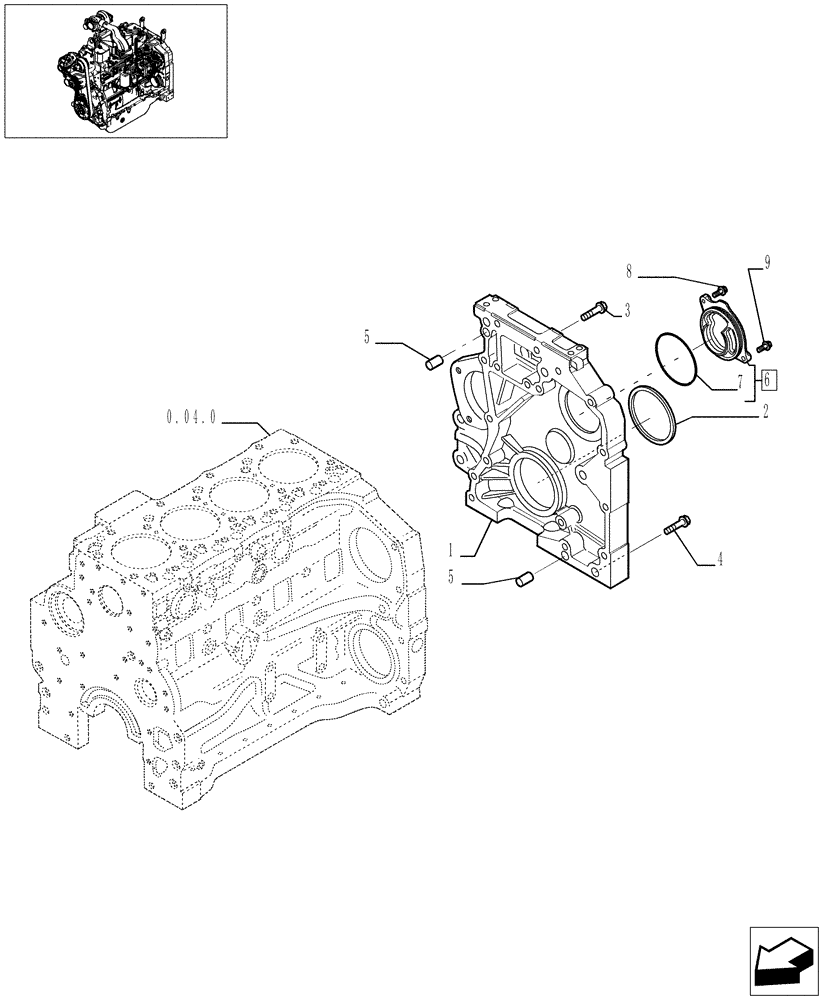

Запчасти Case IH JX1095C (0.04.3/01) - CRANKCASE COVERS (NA) (01) - ENGINE

1

2830422

COVER

1шт.

2

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

3

4899145

BOLT,Flng, M12 x 1.75 x 100mm

2шт.

3

4899759

FLANGE BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

2шт.

4

4891250

BOLT,Flng, M12 x 1.75 x 78mm, Cl 10.9

14шт.

4

4899385

FLANGE BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

3шт.

5

4894532

DOWEL,M18 x 10 L

2шт.

6

2853694

COVER ASSY

1шт.

7

2853695

O-RING

1шт.

8

4899146

SCREW,Hex Flg, M8 x 1.25 x 20

1шт.

9

2852611

SCREW,Shearing

1шт.
