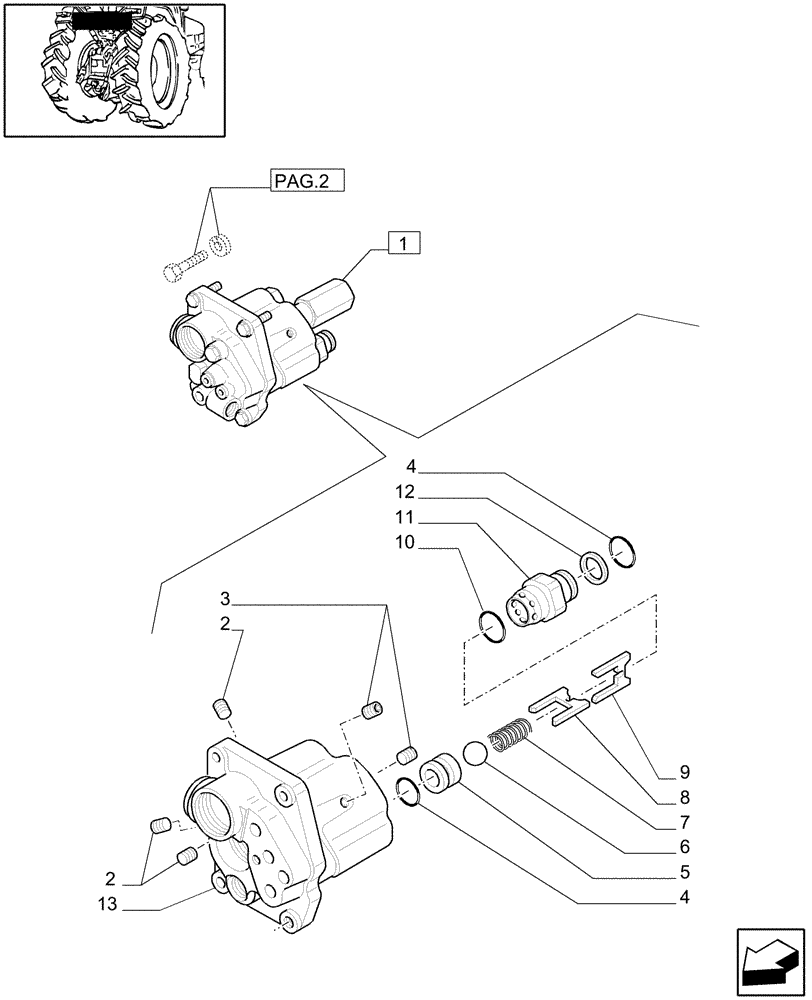

Запчасти Case IH JX1095C (1.82.4[04]) - LIFTER DISTRIBUTOR AND VALVES - BREAKDOWN (07) - HYDRAULIC SYSTEM

1

47124174

CONTROL VALVE

ASSY

1шт.

2

10269150

PLUG,M6 x 1 x 60mm L

M6x1

3шт.

3

5162458

PLUG,M10 x 1.25

M10x1.25

2шт.

4

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

5

5156290

VALVE SEAT,20mm OD x 12mm Thk

1шт.

6

20063580

BALL,13.49mm OD, Gr 100

1шт.

7

5156289

SPRING,Compression, 8.5mm OD x 25.5mm L

1шт.

8

5148907

SPACER,3mm Thk

1шт.

9

5148905

SPACER,3mm Thk

1шт.

10

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

11

5156291

HYD CONNECTOR,M24 x 1.5

1шт.

12

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

13

5170596

BODY

Incl. 2, 3

1шт.
