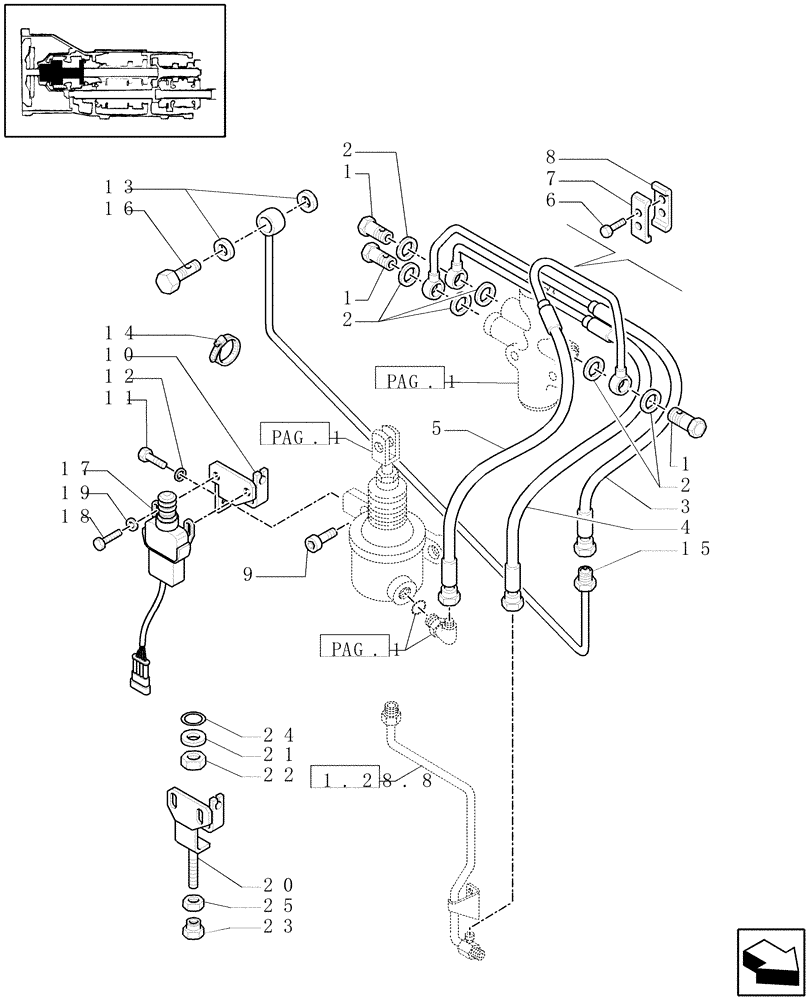

Запчасти Case IH JX1095C (1.80.4[02]) - PTO ENGAGEMENT CLUTCH, SERVOCONTROL (07) - HYDRAULIC SYSTEM

1

10185011

BANJO BOLT,M12 x 1.25 x 23mm

3шт.

2

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

D=12

6шт.

3

5183775

FLEXIBLE HOSE,12.2mm ID x 252mm L

Discharge

1шт.

4

5183772

FLEXIBLE HOSE,12.2mm ID x 242mm L

Inlet

1шт.

5

5183774

FLEXIBLE HOSE,12.2mm ID x 232mm L

Cylinder

1шт.

6

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

2шт.

7

5184304

BRACKET

1шт.

8

5184084

RETAINER COLLAR,2x5mm ID x 40mm L

M5

1шт.

9

14331121

HEX SOC SCREW,M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

10

5185746

BRACKET

, Serial Range: -C6014

1шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

12

11067276

SNAP RING,M24, Ext

1шт.

13

10261160

SEALING WASHER,M14.2 x 18 x 1.5, Copper

2шт.

14

13000990

COLLAR,60mm - 80mm, Worm Gear

D=60-80

1шт.

15

5193145

RIGID TUBE

Discharge

1шт.

16

4864083

BANJO BOLT,M14 x 1.5 x 30mm

1шт.

17

87302930

SWITCH

1шт.

18

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

19

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

20

87481816

BRACKET

, Start Serial: D6014

1шт.

21

13550009

SEALING WASHER,4.15mm ID x 10mm OD x 0.8mm Thk

4x10, Start Serial: D6014

2шт.

22

12574021

NUT,M4 x .7, Cl 10

M4, Start Serial: D6014

2шт.

23

87481953

SLEEVE,M6

, Start Serial: D6014

1шт.

24

11066074

CIRCLIP,M12

12 MM, Start Serial: D6014

1шт.

25

12574221

NUT,M6 x 1, Cl 10

M6, Start Serial: D6014

1шт.
