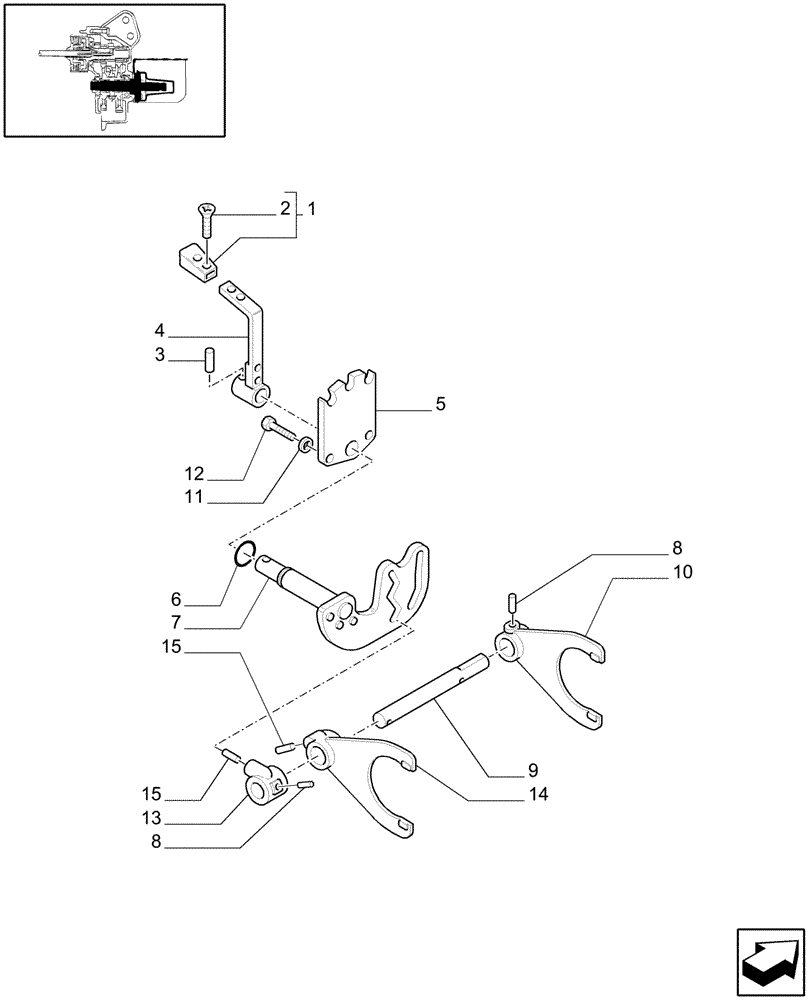

Запчасти Case IH JX1095C (1.80.1/03[04]) - (VAR.817) SYNCHRO MESH GEARED POWER TAKE-OFF (540-540E-1000 RPM) - ROD AND FORKS (07) - HYDRAULIC SYSTEM

1

5131161

HANDLE GRIP

1шт.

2

15919407

SCREW,Cross Flat Hd, M6.3 x 16

2шт.

3

14601270

ROLL PIN,M5 x 28, Slotted

2шт.

4

5177567

LEVER

1шт.

5

5177569

PLATE

TOOTHED SECTOR

1шт.

6

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

7

5173470

PIN

, Serial Range: -C5637

1шт.

7

5198847

PIN

, Start Serial: D5637

1шт.

8

14604070

LOCK PIN,M6 x 28, Slotted

2шт.

9

5173455

ROD,16mm OD x 206mm L

1шт.

10

5180677

YOKE,16mm Hole Dia

1шт.

11

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

12

18700721

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

5173457

DOG

Incl. Ref. 15, Serial Range: -C5637

1шт.

13

5198858

DOG

Incl. Ref. 15, Start Serial: D5637

1шт.

14

5173447

YOKE

Incl. Ref. 15, Serial Range: -C5637

1шт.

14

5198910

SHIFTER FORK

Incl. Ref. 15, Start Serial: D5637

1шт.

15

5154545

PIN,10mm OD x 25mm L

2шт.
