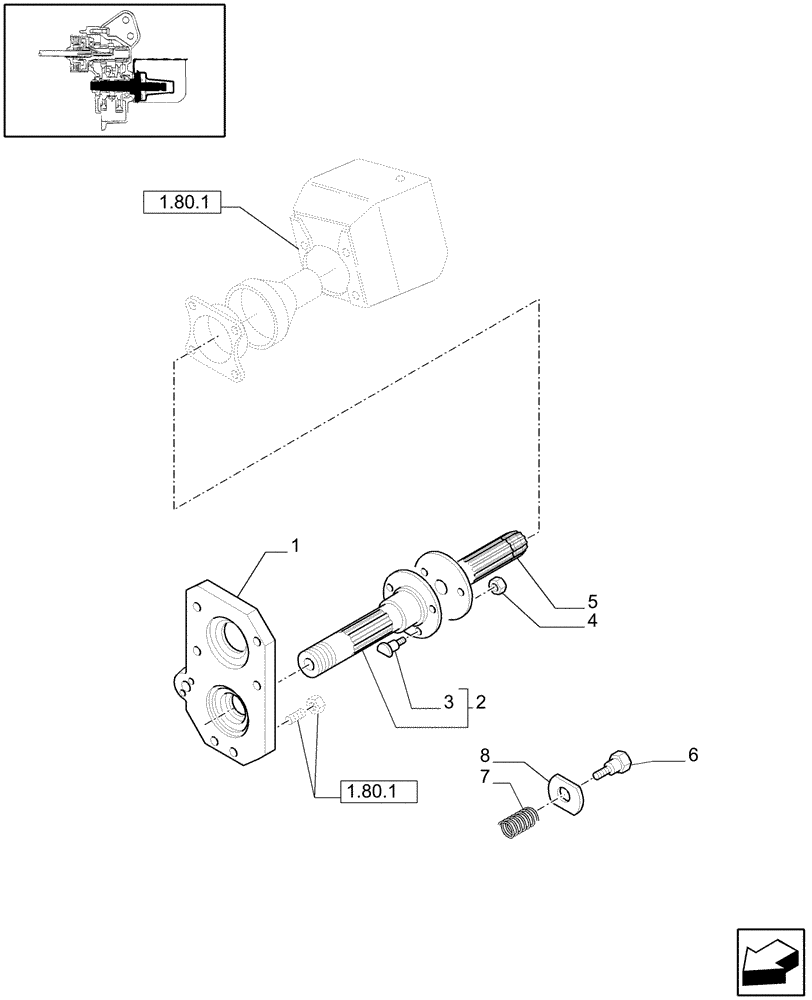

Запчасти Case IH JX1095C (1.80.1/03[03]) - (VAR.817) SYNCHRO MESH GEARED POWER TAKE-OFF (540-540E-1000 RPM) - SHAFT AND COVER (07) - HYDRAULIC SYSTEM

1

5187934

COVER

1шт.

2

5173191

SHAFT

1шт.

3

44012300

PIN,14mm OD x 37mm L

M12x37

3шт.

4

16105025

LOCK NUT,M12 x 1.25, Cl 10

3шт.

5

5185601

SHAFT,1000 rpm, 21 Teeth

1000 RPM, 21 Teeth

1шт.

5

5185602

SHAFT,540 rpm, 6 Teeth

540 RPM, 6 Teeth

1шт.

6

47130774

PIN,13.5mm OD x 22mm L

1шт.

7

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

8

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.
