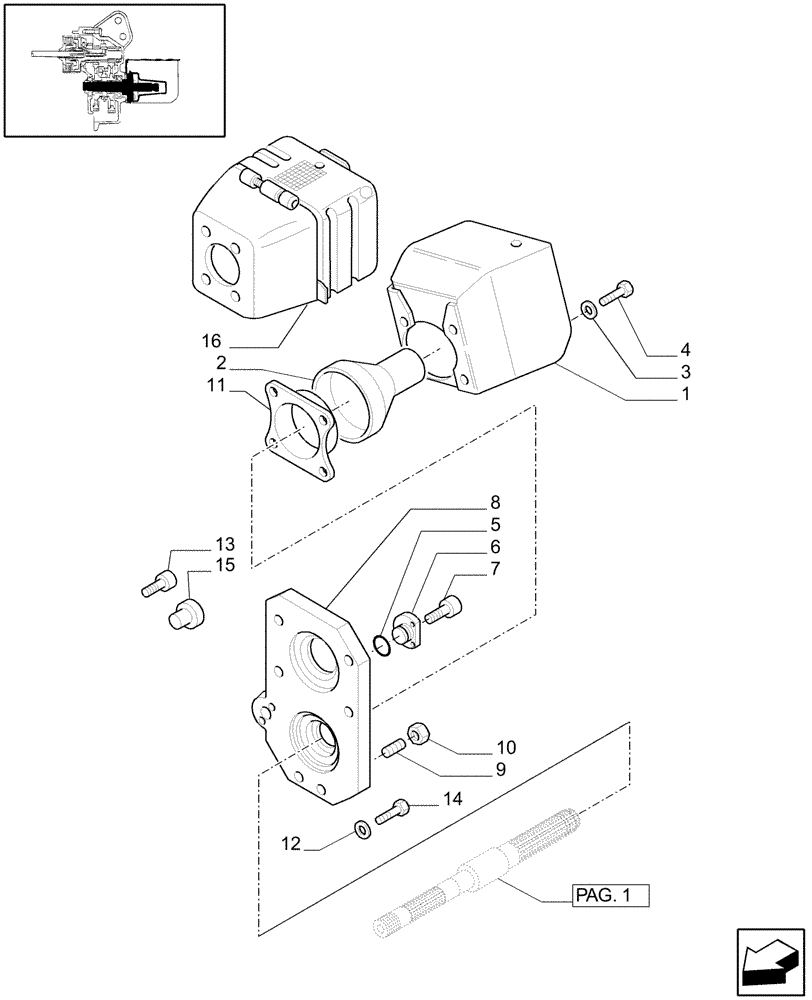

Запчасти Case IH JX1095C (1.80.1[02]) - POWER TAKE-OFF (540 RPM) (07) - HYDRAULIC SYSTEM

1

5158241

SHIELD

1шт.

2

5171520

SHIELD,132mm L

1шт.

3

10569374

LOCK WASHER,M8

4шт.

4

80120228

SCREW

M8x20

4шт.

5

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

(M14 ID x 1.78 Thk)

1шт.

6

5171837

PLUG,17.3mm ID x 42mm OD x 7.5mm Thk

1шт.

7

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

8

47133661

COVER

1шт.

9

13543624

STUD,M8 x 1.25 x 46mm L, 22 Thd, Cl 8.8

M8 x 16 x 30

6шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

6шт.

11

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

13

14592587

BUTTON,Button, M6.50 x 3.50mm

6.5x3.5

2шт.

14

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

15

14507287

PLUG

Type A

1шт.

16

5199352

GUARD

VAR.837

1шт.
