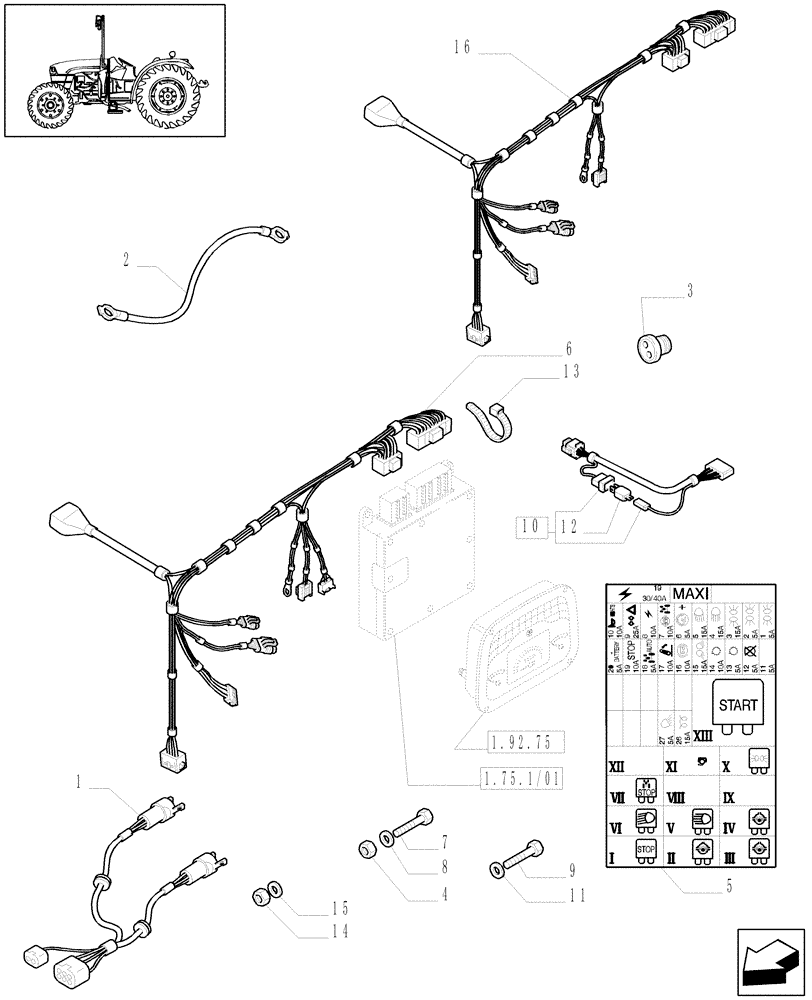

Запчасти Case IH JX1095C (1.75.4/06) - (VAR.066-068) 12X12 (40KM/H) TRANSMISSION W/POWER SHUTTLE - ELECT. CABLES - L/CAB (06) - ELECTRICAL SYSTEMS

1

5198442

ELECTRIC CABLE

G/Box Side

1шт.

2

87309787

ELECTRIC CABLE

Speed, Ground Harness Cab-Motor

1шт.

3

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

4

15896414

NUT,M5, Cl 8

2шт.

5

47129973

DECAL

1шт.

6

47134764

ELECTRIC CABLE

Power Shuttle Dashboard, Serial Range: -HJH076230

1шт.

7

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

3шт.

8

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

3шт.

9

13279211

SCREW,Pozidriv Pan Hd, M8 x 16mm, Cl 5.8, Full Thd

4шт.

10

5188081

WIRE HARNESS

Seat Safety Circuit Harness W/Cab

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

83929594

DIODE

1шт.

13

85805383

CABLE TIE

CABLE STRAP

24шт.

14

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

15

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

15

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6x16

1шт.

16

87530950

ELECTRIC CABLE

Power Shuttle Dashboard, Start Serial: HJH076231

1шт.
