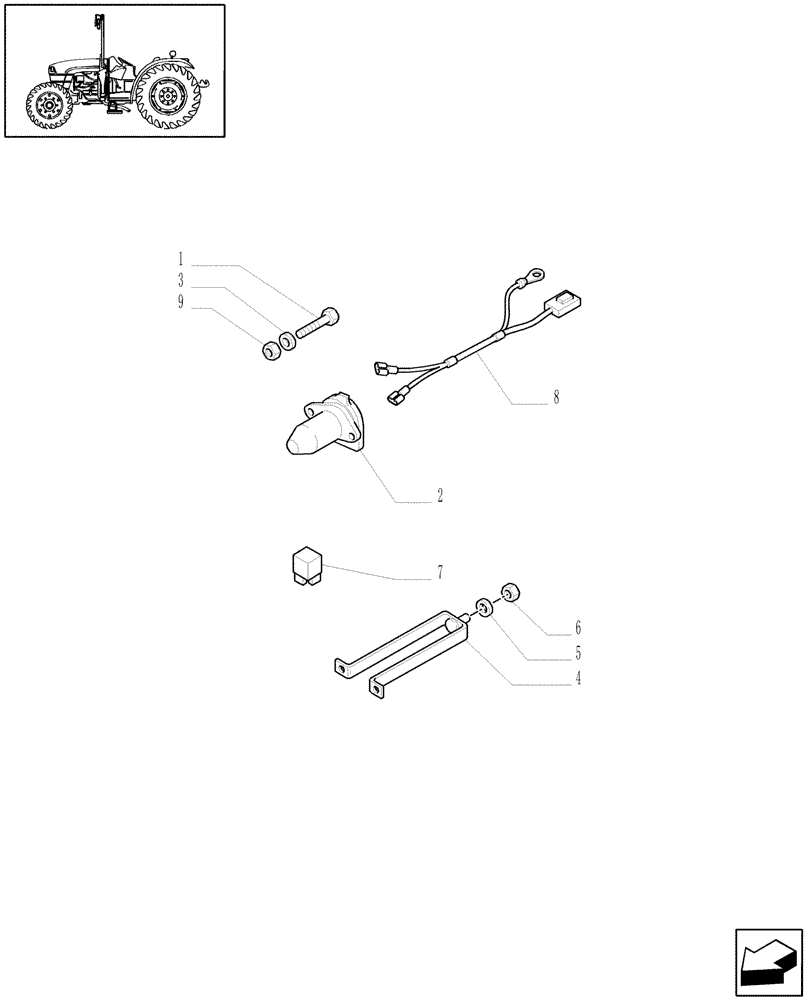

Запчасти Case IH JX1095C (1.75.4/02) - (VAR.738) ADDITIONAL POWER POINTS - ISO (06) - ELECTRICAL SYSTEMS

1

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

2шт.

2

5170243

POWER SOCKET,25A

1шт.

3

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

4

5185640

BRACKET

W/Cab

1шт.

5

11194774

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

6

12575411

LOCK NUT,M6 x 1, Cl 8

1шт.

7

5173264

FUSE,30A, Maxi, Green

30A

1шт.

8

5198033

ELECTRIC CABLE

L/Cab, incl.2

1шт.

8

47136880

ELECTRIC CABLE

W/Cab, incl.2, Serial Range: -HJH052980

1шт.

9

15896414

NUT,M5, Cl 8

2шт.
