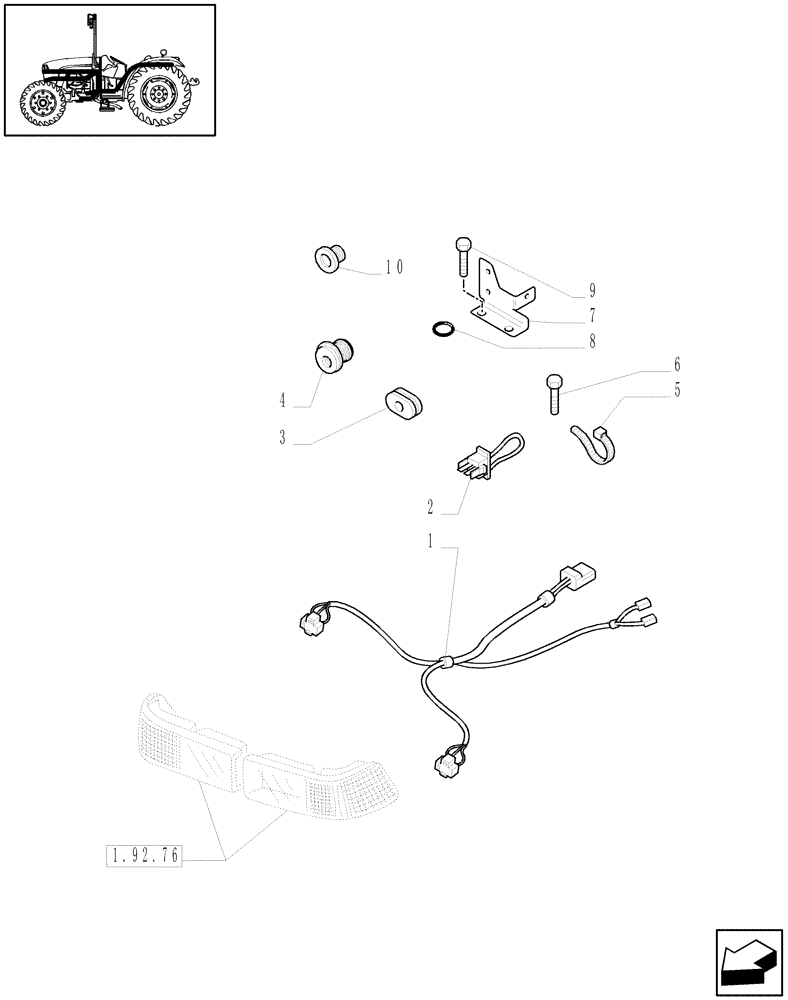

Запчасти Case IH JX1095C (1.75.4[02]) - AUXILIARY CABLES (06) - ELECTRICAL SYSTEMS

1

47056953

ELECTRIC CABLE

1шт.

2

47124985

BRIDGE

1шт.

3

87565310

GROMMET,8mm ID x 28mm x 38mm x 10mm

W/Cab

4шт.

4

47128618

RUBBER RING

, Serial Range: -C5262

1шт.

5

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

10 mm dia.

4шт.

6

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

M6x10

4шт.

7

87306771

BRACKET

1шт.

8

14496724

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

9

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

10

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.
