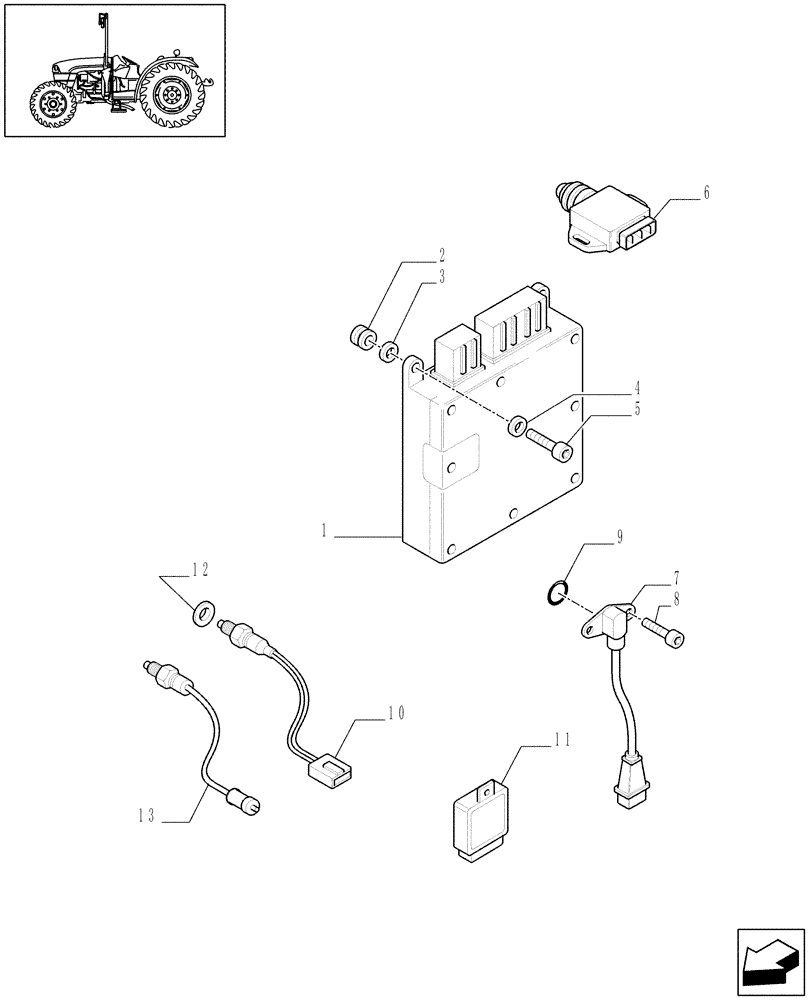

Запчасти Case IH JX1095C (1.75.1/05) - (VAR.070-072-073) 24X12 (40KM/H) W/HI-LO, W/POWER SHUTTLE - ELECTRONIC CONTROL UNIT (06) - ELECTRICAL SYSTEMS

1

47137064

ECU

P/Shuttle Control, Serial Range: -C5651

1шт.

1

87575340R

REMAN ELECT CONTROL

P/Shuttle Control

1шт.

1

87575340C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

1

87575340

ECU

P/Shuttle Control, Start Serial: D5651

1шт.

1

87575340R

REMAN ELECT CONTROL

Remanufactured Electronic Control Unit

1шт.

1

87575340C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

1

47130889C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

2

5175382

RUBBER RING

D=10

1шт.

3

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

3шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

6

47137022

SWITCH

M6x10

2шт.

7

87564764

SENSOR

PTO Speed

2шт.

8

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

4шт.

9

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

10

47132568

SWITCH

Grey, Serial Range: -C5561

2шт.

10

47132569

SWITCH

Green, Serial Range: -C5561

2шт.

11

5188605

BUZZER,12V, 0.7A

1шт.

12

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

M6x55

1шт.

13

87585979

SWITCH

Grey, Start Serial: D5561

2шт.

13

87585980

SWITCH

Green, Start Serial: D5561

2шт.
