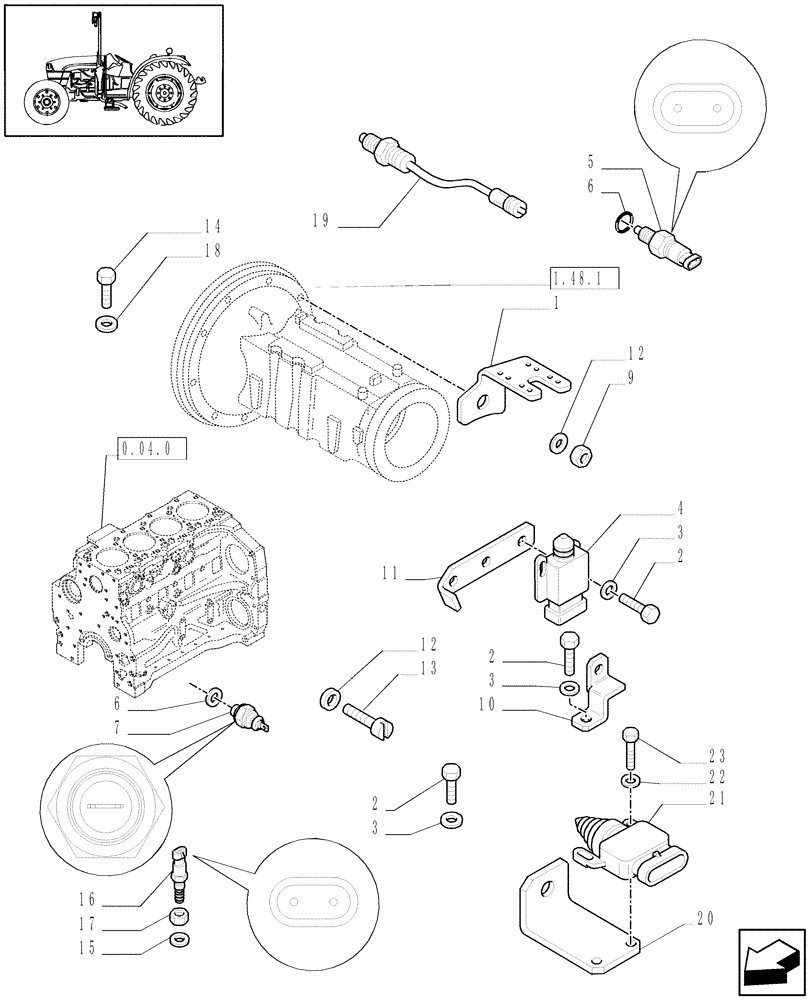

Запчасти Case IH JX1095C (1.75.0[02]) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

1

87317061

BRACKET

1шт.

2

13272214

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

4WD

1шт.

3

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

4

47137022

SWITCH

Snap Action

1шт.

5

47132956

SENSOR

Yellow, Neutral Gearbox and Reverser, Serial Range: -C5602

1шт.

6

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

14x20

1шт.

7

82036587

PRESSURE SWITCH

Oil Pressure

1шт.

8

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18x1.5

1шт.

9

10794014

NUT,M4, Cl 8

2шт.

10

5187502

BRACKET

4WD, JX1085C

1шт.

11

5187503

BRACKET

4WD, JX1085C

1шт.

12

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

4шт.

13

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

1шт.

14

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

15

12544771

LOCK WASHER

D=16, 4WD, JX1085C

1шт.

16

5193121

PUSH BUTTON SWITCH

Push Starting, 4WD, JX1085C

1шт.

17

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

4WD, JX1085C

1шт.

18

11181674

BELLEVILLE WASHER,M5 Bolt Size x 15mm OD x 1mm Thk

1шт.

19

87598056

SWITCH

Yellow, Start Serial: D5602

1шт.

20

87481920

BRACKET

1шт.

21

87484878

LIMIT SWITCH

1шт.

22

13550009

SEALING WASHER,4.15mm ID x 10mm OD x 0.8mm Thk

4x10

2шт.

23

10445721

SCREW,Hex, M4 x 25mm, Cl 8.8, Full Thd

2шт.
