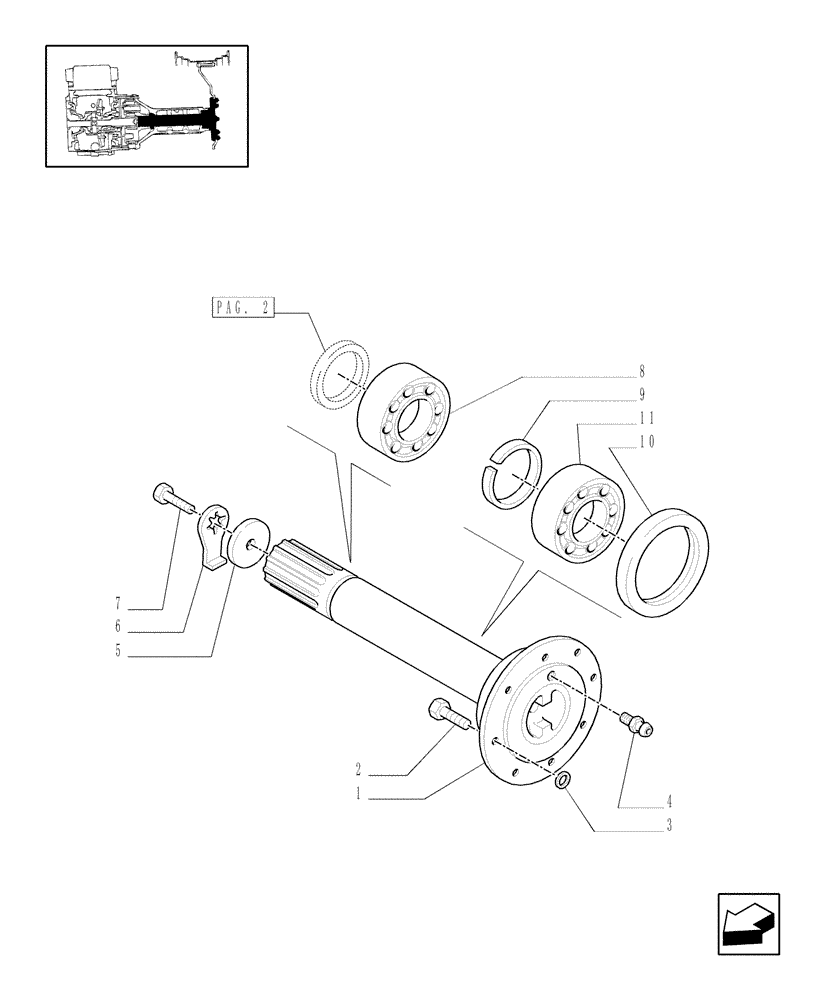

Запчасти Case IH JX1095C (1.48.1[01]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5176550

CONTROL SHAFT

JX1085C

2шт.

1

87304434

CONTROL SHAFT

JX1095C

2шт.

2

15983824

BOLT,Hex, M18 x 1.5 x 35mm, Cl 8.8

16шт.

3

10520304

WASHER,18.8mm ID x 32mm OD x 4mm Thk

16шт.

4

13407211

LUBE NIPPLE,M10 x 1

2шт.

5

4997201

DISC,16.5mm ID x 70mm OD x 80mm Thk

2шт.

6

4997202

LOCKING PLATE,24.1mm ID x 28mm OD x 2mm Thk

2шт.

7

14258031

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

2шт.

8

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm, JX1095C

2шт.

9

5152729

SPACER,117mm ID x 121mm OD x 6.5mm L

2шт.

10

5135387

OIL SEAL,90mm ID x 120mm OD x 13mm Thk

90x120x13

2шт.

11

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

65x120x23

2шт.

11

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm, JX1085C

2шт.
