(1.32.6/01[03]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - PIPES

Запчасти Case IH JX1095C (1.32.6/01[03]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - PIPES (03) - TRANSMISSION

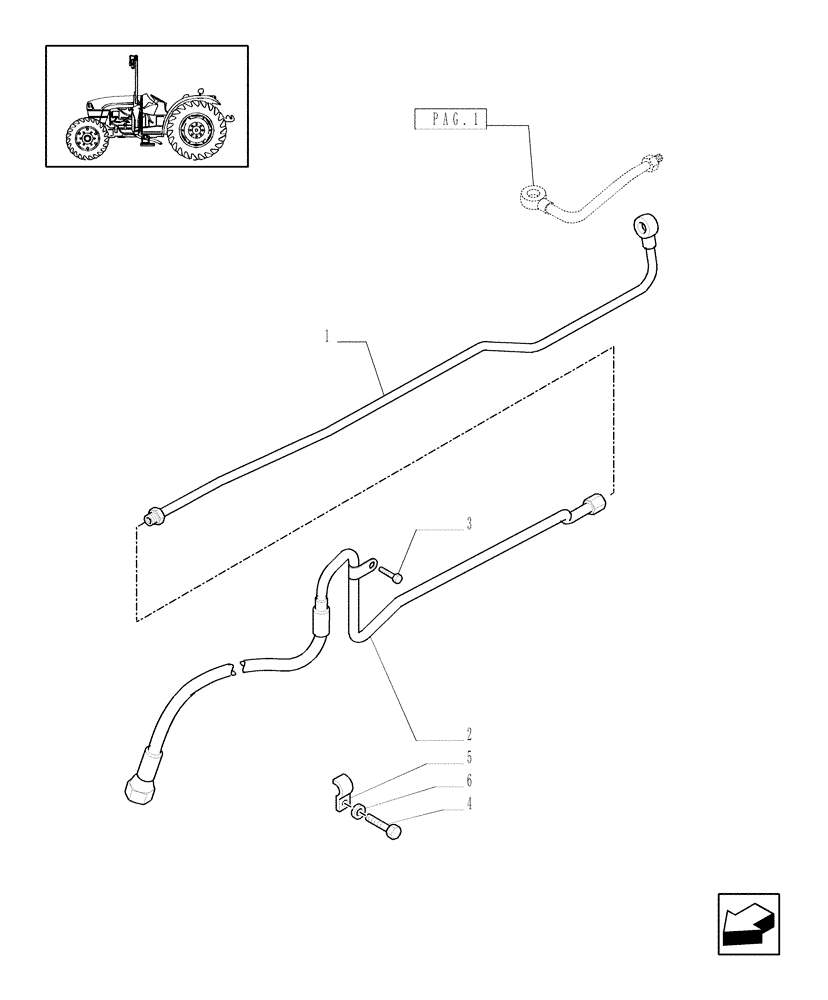

Схема запчастей Case IH JX1095C - (1.32.6/01[03]) - (VAR.323-323/1) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK (40 KM/H) - PIPES (03) - TRANSMISSION
4
3
pag.1
1
5
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87305492

RIGID TUBE,12 mm OD

1шт.

2

87305496

RIGID TUBE,12 mm OD

1шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

4

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

5

44903268

RETAINER COLLAR,12mm ID

1шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

Выбрано товаров: 6
