Запчасти Case IH JX1095C (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL

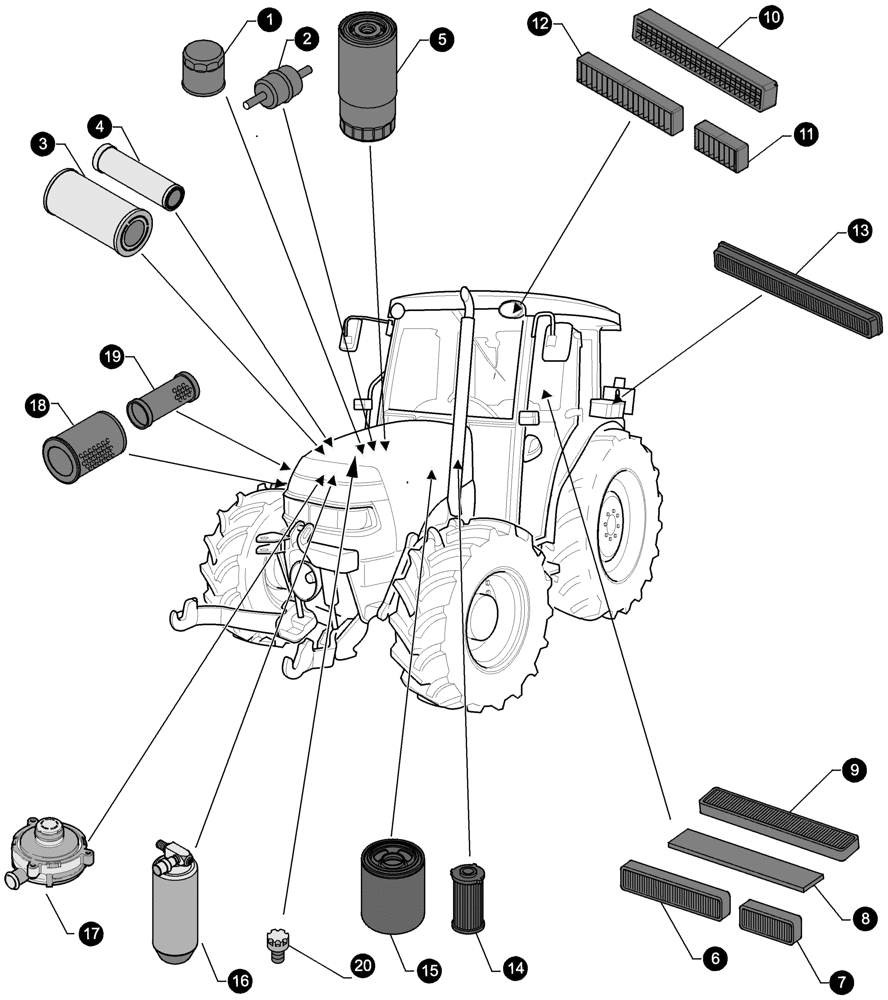

Схема запчастей Case IH JX1095C - (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL
3
11
6
5
18
4
8
14
12
17
13
2
20
9
19
16
10
1
15
7

Артикул

Название

Примечание

Количество

1

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine Oil, Spin On, Every 600 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

2

87329736

FUEL FILTER

Primary, Strainer In Line, Every 300 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

3

87682993

AIR FILTER,91mm ID x 164.5mm OD x 347.5mm L

Outer Cartridge, Every 300 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

4

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Inner Cartridge, Every 300 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

5

84565884

FUEL FILTER,75.8mm OD x 172mm L, M16 x 1.5 - 6H

Primary, Every 300 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

6

47131907

CAB FILTER

Light Long Cartridge, Ricirculation, Every 1200 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

7

47131906

CAB FILTER

Inner Cartridge, Anti-pollen, Every 1200 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

8

47131888

CAB FILTER

Inner Thin Cartridge, Recirculation, Every 1200 hours

2шт.

Valid with JX1085C-TRACTOR Models

1шт.

9

84572321

CAB FILTER

Outer Cartridge, Anti-pollen, Every 1200 hours

2шт.

Valid with JX1085C-TRACTOR Models

1шт.

10

47129095

CAB FILTER,Carbon

Paper Cartridge, w/Active Carbon, Every 1200 hours

2шт.

Valid with JX1085C-TRACTOR Models

1шт.

11

47131908

CAB FILTER

Inner Cartridge, Anti-pollen, Every 1200 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

12

47131909

CAB FILTER

Inner Cartridge, Anti-pollen, Every 1200 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

13

47129134

CAB FILTER

Outer Cartridge, Every 1200 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

14

5194879

ELEMENT

Transmission/Pump, Every 600 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

15

84257511

HYDRAULIC OIL FILTER,138.00mm OD

Transmission/Pump, Every 600 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

16

5165615

RECEIVER-DRYER

Primary Cartridge, Air Conditioning, Every 300 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

17

500315794

BREATHER

Regulator valve, Every 300 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

18

87313626

AIR FILTER

Main, Every 300 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

19

87313629

AIR FILTER

Safety, Every 300 hours

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

20

9636958

BREATHER

Transmission Box

1шт.

Valid with JX1085C-TRACTOR Models

1шт.

Выбрано товаров: 40
