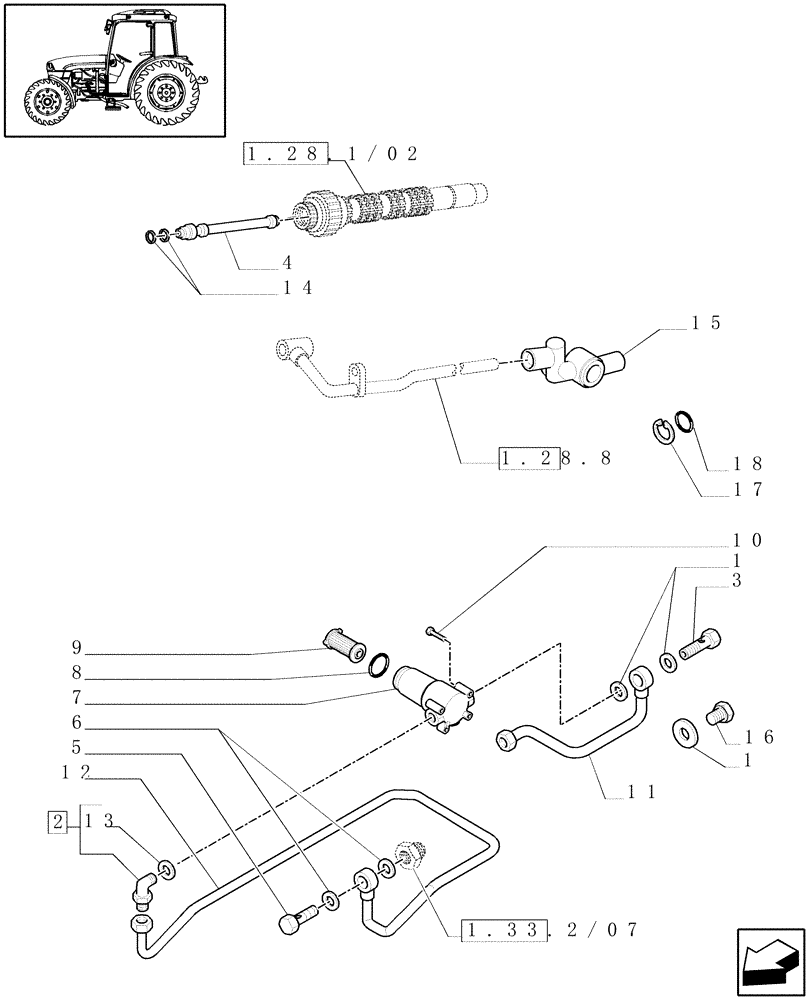

Запчасти Case IH JX1095C (1.28.8/05) - (VAR.066-068-464) 12X12 (40 KM/H) TRANSMISSION W/POWER SHUTTLE - OIL FILTER, UNIONS (03) - TRANSMISSION

1

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

2

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

1шт.

3

5182095

BANJO BOLT,M22 x 1.5 x 47mm

M22

1шт.

4

5173963

RIGID TUBE

1шт.

5

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

1шт.

6

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

3шт.

7

84256436

HYDRAULIC OIL FILTER

Incl. 8, 9

1шт.

8

5194880

O-RING KIT

1шт.

9

5194879

ELEMENT

1шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

11

5193553

RIGID TUBE

Front

1шт.

12

5193388

RIGID TUBE

Rear

1шт.

13

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

14

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

2шт.

15

5181804

HYD CONNECTOR

1шт.

16

10305171

PLUG,M22 x 1.5 x 21

1шт.

17

11066676

SNAP RING,M18, Ext

1шт.

18

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

2шт.
