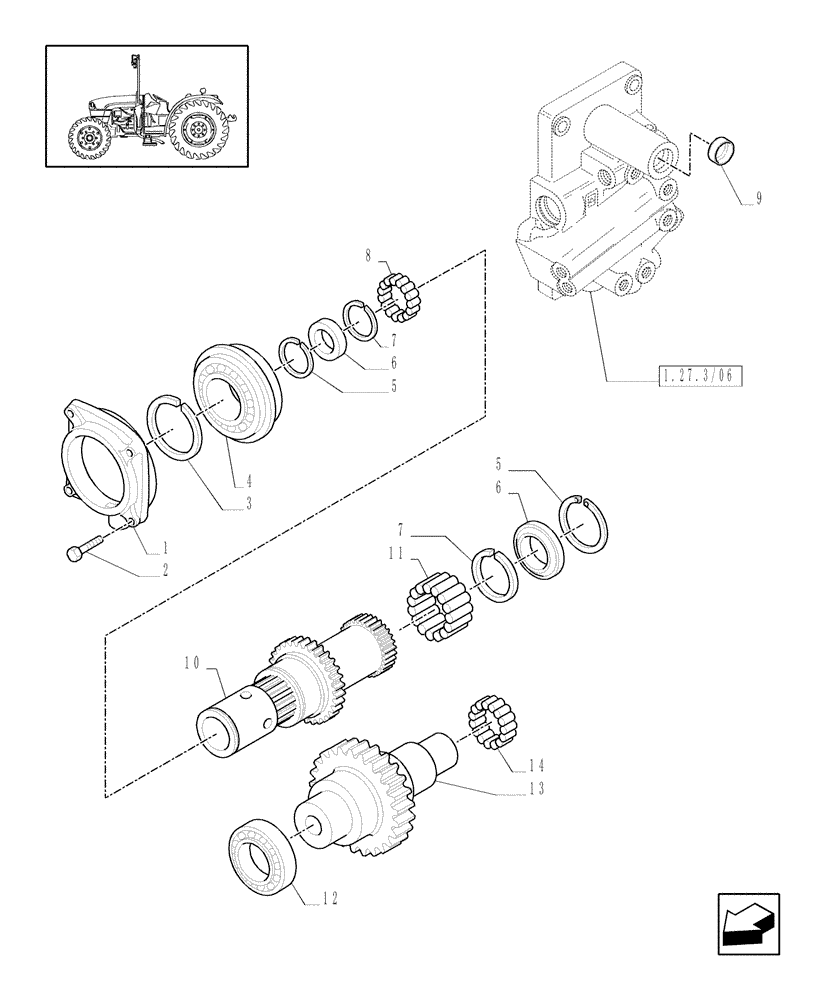

Запчасти Case IH JX1095C (1.28.7/07) - (VAR.074) 32X12 (40KM/H) TRANSMISSION W/CREEPER SPEEDS FOR HI-LO AND P.SHUTT- GEARBOX HYDR. CONTROL (03) - TRANSMISSION

1

5176961

MANIFOLD

1шт.

2

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

3

5177510

SNAP RING,2mm Thk, Ext

1шт.

4

5168366

BALL BEARING,70mm ID x 110mm OD x 20mm W

70x110x20

1шт.

5

5117076

CIRCLIP,M47, Ext

D=46

1шт.

6

5168364

SEAL,40mm ID x 47mm OD x 4mm Thk

40x47x4

2шт.

7

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

D=45

2шт.

8

5168362

ROLLER CAGE BEARING,40mm ID x 45mm OD x 17mm W

40x45x17

1шт.

9

5168241

SEAL,22mm ID x 32mm OD x 9mm Thk

1шт.

10

5177501

DRIVEN SHAFT,40T / 26T

Low

1шт.

11

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

40x45x27

1шт.

12

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

13

5177539

DRIVEN GEAR,36T

Low

1шт.

14

5168198

ROLLER BEARING,25mm ID x 33mm OD x 20mm W

25x33x20

1шт.
