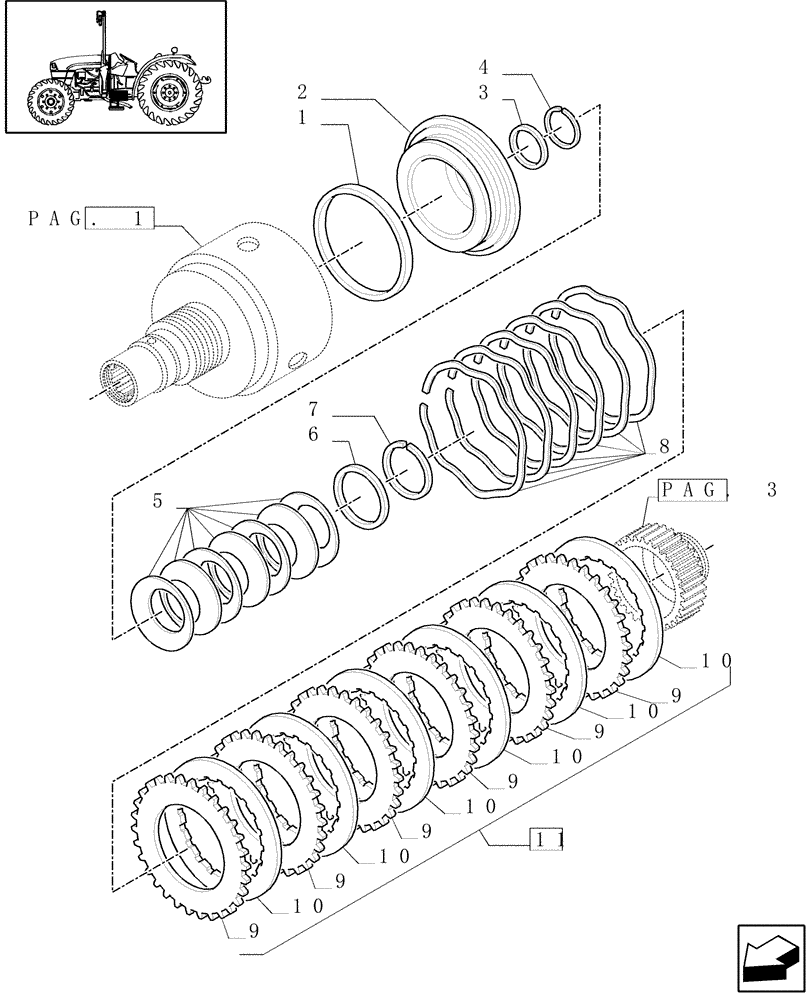

Запчасти Case IH JX1095C (1.28.7/02[02]) - (VAR.066-068-464) 12X12 (40KM/H) TRANSMISSION W/POWER SHUTTLE - CLUTCH DISKS (03) - TRANSMISSION

1

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

1шт.

2

5179794

PISTON

1шт.

3

5173674

GASKET,35mm ID x 42mm OD x 4mm Thk

1шт.

4

5124473

SNAP RING,1.5mm Thk, Int

D=42

1шт.

5

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

7шт.

6

5168347

CUP,56mm ID x 66mm OD x 3mm Thk

1шт.

7

5168348

SNAP RING,1.5mm Thk, Ext

1шт.

8

81864341

SPRING,148.35mm ID

6шт.

9

5173294

CLUTCH DISC,99mm ID x 152.6mm OD x 2mm Thk

CLUTCH DISK 2 mm Thk

1шт.

9

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

CLUTCH DISK 2.2 mm Thk

1шт.

10

5154744

CLUTCH DRIVING PLATE

, Serial Range: -C5590

6шт.

10

87534846

CLUTCH PLATE,92.66mm ID x 133.35mm OD x 2mm Thk

, Start Serial: D5590

6шт.

11

5173750

KIT

Clutch Plate, Serial Range: -C5590

1шт.

11

87534849

KIT

Clutch Plate, Start Serial: D5590

1шт.
