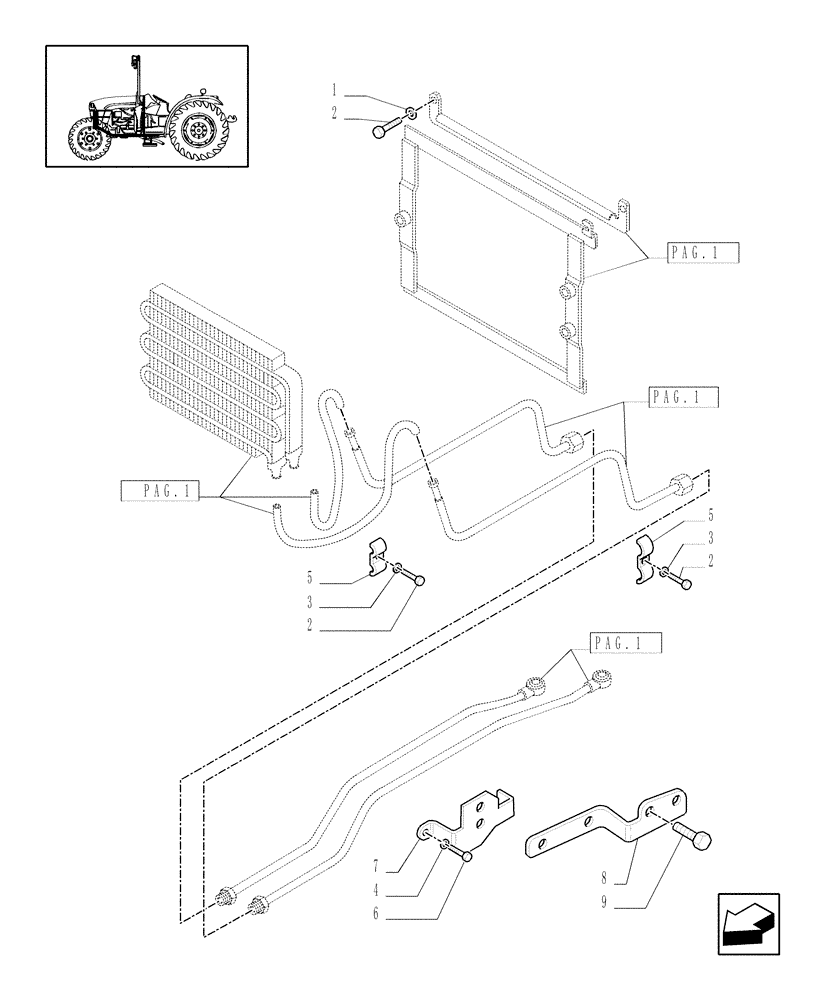

Запчасти Case IH JX1095C (1.27.7/01[02]) - (VAR.066-068-464) 12X12 (40 KM/H) TRANSMISSION W/POWER SHUTTLE - BRACKETS (03) - TRANSMISSION

1

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

Valid w/VAR.066 only

2шт.

1

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

Valid w/VAR. 066 only

2шт.

2

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

2

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

Valid w/VAR.066 only

1шт.

3

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

4

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

5

5177880

CLAMP,14mm ID

2шт.

6

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

7

47134203

BRACKET

1шт.

8

5180410

BRACKET

1шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.
