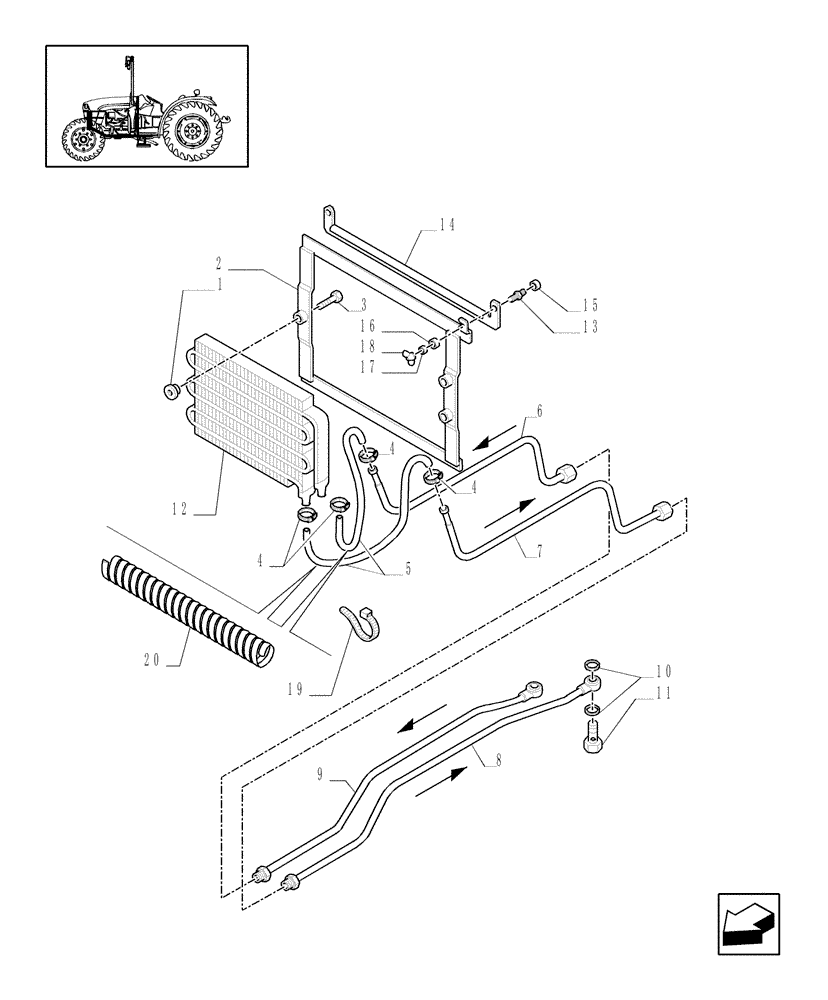

Запчасти Case IH JX1095C (1.27.7/01[01]) - (VAR.066-068-464) 12X12 (40 KM/H) TRANSMISSION W/POWER SHUTTLE - RADIATOR AND PIPES (03) - TRANSMISSION

1

5175390

PAD

Valid w/VAR.066 only

3шт.

2

5176664

FRAME

Valid w/VAR.066 only

1шт.

3

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

Valid w/VAR.066 only

3шт.

4

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

D=16-25

4шт.

5

5143837

HYDRAULIC HOSE,13.00 mm ID

1шт.

1500mm Before Date 21 February 2006; 600mm W/VAR.066, 1500mm W/VAR.464 After Date 21 February 2006

1шт.

6

5185432

RIGID TUBE

Delivery

1шт.

7

5185433

RIGID TUBE

Return

1шт.

8

5177868

RIGID TUBE

Return, Valid w/VAR.066 only

1шт.

9

5177864

RIGID TUBE

Delivery, Valid w/VAR.066 only

1шт.

10

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24, Valid w/VAR.066 only

4шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34, Valid w/VAR.066 only

2шт.

12

83945933

OIL COOLER

Valid w/VAR.066 only

1шт.

13

5174191

SCREW

M8, Valid w/VAR.066 only

1шт.

14

5176134

GUIDE

Valid w/VAR.066 only

2шт.

15

12598374

LOCK WASHER

D=8, Valid w/VAR.066 only

1шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

Valid w/VAR.066 only

1шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

18

10102004

WING NUT

M8, Valid w/VAR.066 only

1шт.

19

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

20

5186848

FLEXIBLE HOSE

2шт.

W/VAR. Only, After Date 21 February 2006

1шт.
