(1.27.3/06[02]) - (VAR.070-072-073) 24X12 (40KM/H) TRANSM. W/HI-LO & POWER SHUTTLE - COVER AND CAPS

Запчасти Case IH JX1095C (1.27.3/06[02]) - (VAR.070-072-073) 24X12 (40KM/H) TRANSM. W/HI-LO & POWER SHUTTLE - COVER AND CAPS (03) - TRANSMISSION

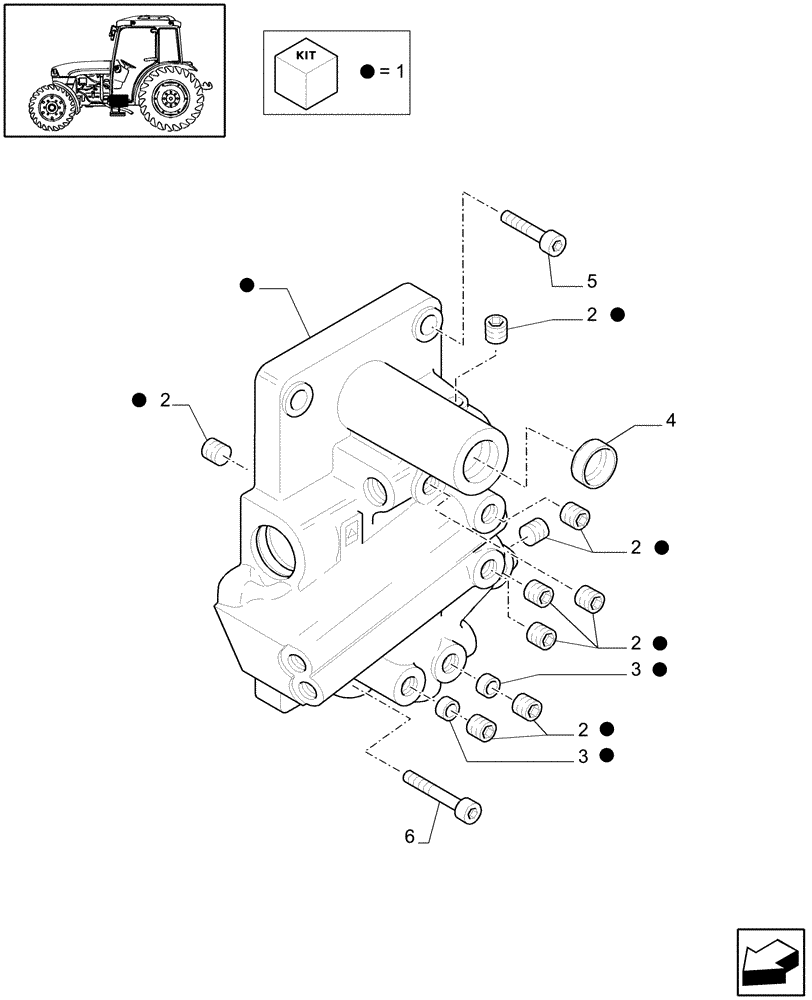

Схема запчастей Case IH JX1095C - (1.27.3/06[02]) - (VAR.070-072-073) 24X12 (40KM/H) TRANSM. W/HI-LO & POWER SHUTTLE - COVER AND CAPS (03) - TRANSMISSION
1
1
1
3
3
2
5
1
1
2
1
6
2
2
1
2
4
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47126468

COVER

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

9шт.

3

5173959

HYD CONNECTOR

2шт.

4

14329801

PLUG,M32, Tapered

1шт.

5

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

6

14307821

HEX SOC SCREW,M10 x 1.25 x 45mm, Cl 8.8

2шт.
