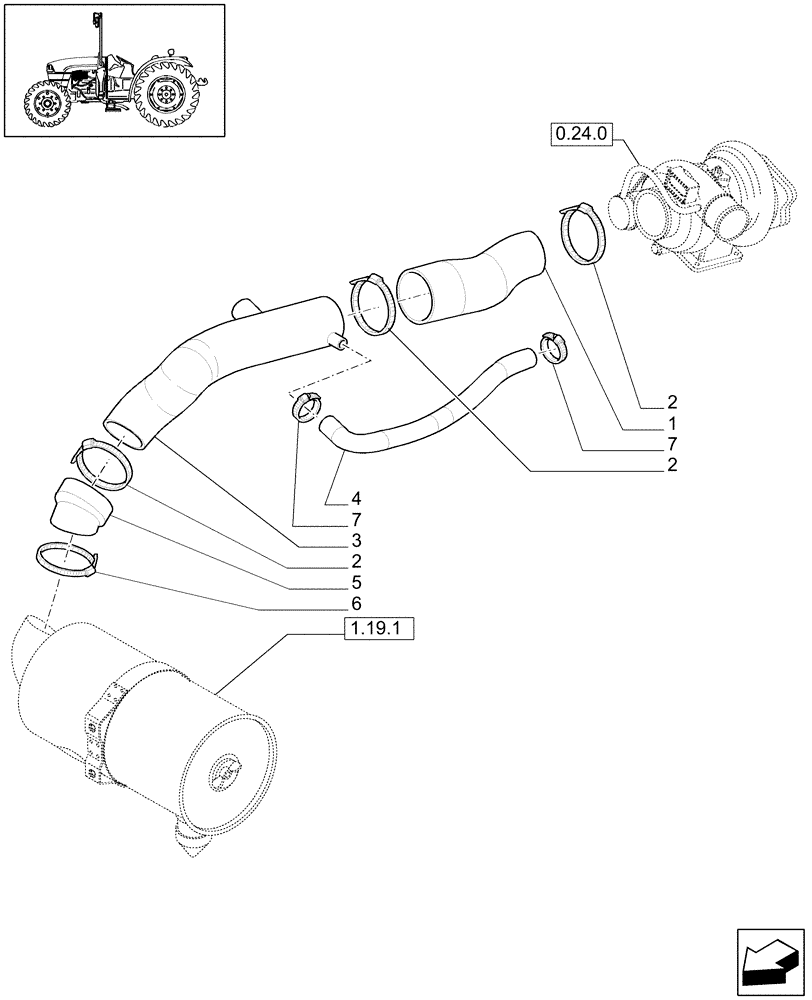

Запчасти Case IH JX1095C (1.19.7[03]) - AIR CLEANER PIPING - L/CAB (02) - ENGINE EQUIPMENT

1

87304853

FLEXIBLE HOSE,184.00 mm x 60.00 mm ID, 76 mm ID

1шт.

2

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70-90

3шт.

3

87310658

RIGID TUBE

1шт.

4

87304856

FLEXIBLE HOSE,22.00 mm ID x 341.00 mm

1шт.

5

87310661

SLEEVE

1шт.

6

13001290

HOSE CLAMP,90mm - 110mm, Worm Gear

D=90-110

1шт.

7

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

2шт.
