(1.19.1/01[02]) - (VAR.199) AIR FILT. DUST EJECT. W/EXHA. GUARD SHIELD FOR VERTIC. EXHAUST -DRY AIR CLEANER-W/CAB

Запчасти Case IH JX1095C (1.19.1/01[02]) - (VAR.199) AIR FILT. DUST EJECT. W/EXHA. GUARD SHIELD FOR VERTIC. EXHAUST -DRY AIR CLEANER-W/CAB (02) - ENGINE EQUIPMENT

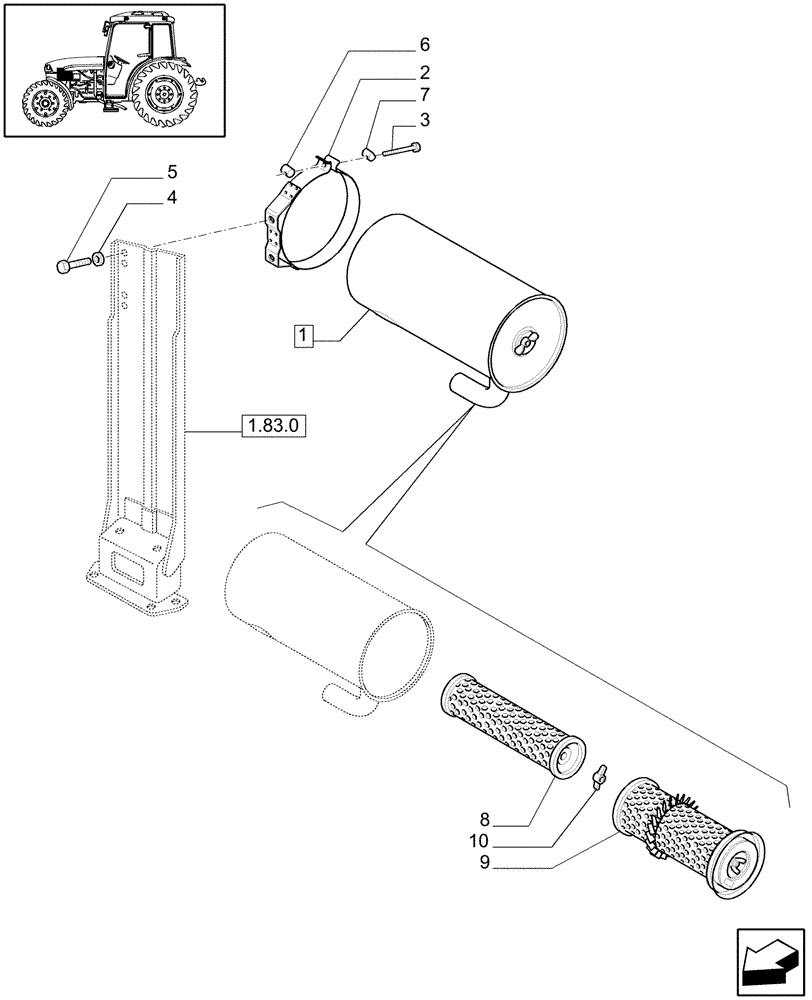

Схема запчастей Case IH JX1095C - (1.19.1/01[02]) - (VAR.199) AIR FILT. DUST EJECT. W/EXHA. GUARD SHIELD FOR VERTIC. EXHAUST -DRY AIR CLEANER-W/CAB (02) - ENGINE EQUIPMENT
6
2
10
4
7
1.83.0
9
1
3
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47126065

AIR FILTER

ASSY

1шт.

2

47134826

BRACKET

1шт.

3

5120756

SCREW

M8 x 1.25 x 65

1шт.

4

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

5

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

6

5120754

PIN

1шт.

7

5120755

PIN,16mm OD x 15mm L

1шт.

8

87313629

AIR FILTER

Safety

1шт.

9

87313626

AIR FILTER

Main

1шт.

10

87335528

NUT

1шт.

Выбрано товаров: 10
