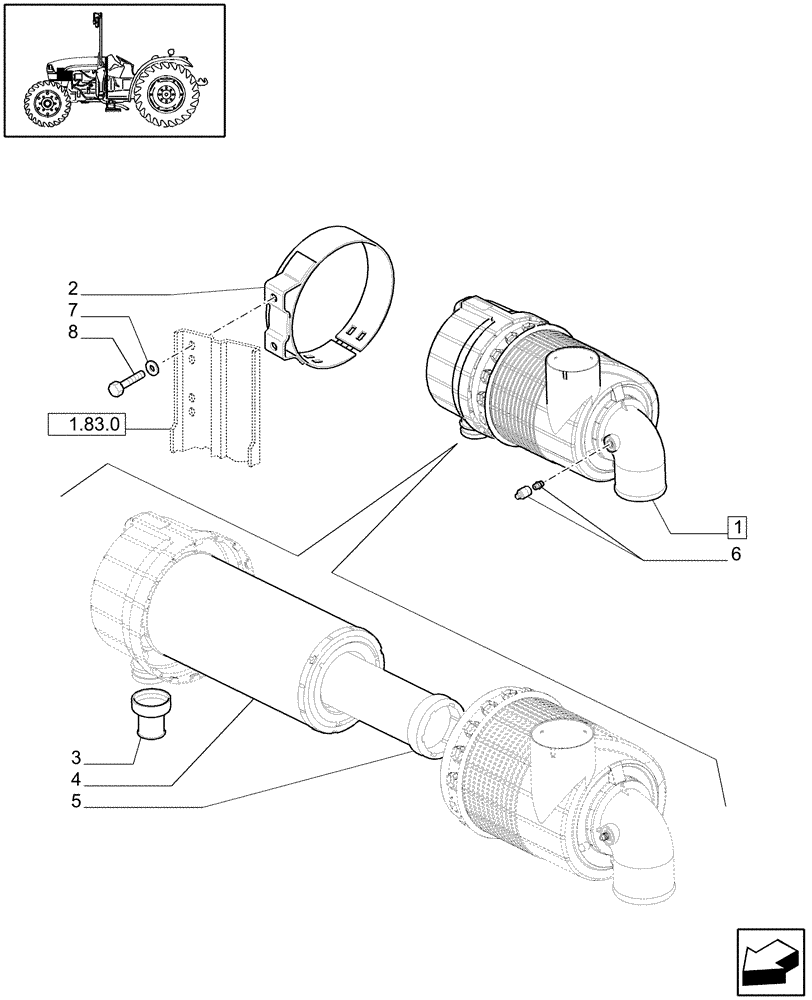

Запчасти Case IH JX1095C (1.19.1/01[01]) - (VAR.199) AIR FILT. DUST EJECT. W/EXHA. GUARD SHIELD FOR VERTIC. EXHAUST - DRY AIR CLEANER - L/CAB (02) - ENGINE EQUIPMENT

1

47131297

AIR CLEANER

ASSY, 213mm OD x 362.2mm L

1шт.

2

87309566

SUPPORT

1шт.

3

47134169

DRAIN PLUG

1шт.

4

87682993

AIR FILTER,91mm ID x 164.5mm OD x 347.5mm L

Main

1шт.

5

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Safety

1шт.

6

5138819

INDICATOR

1шт.

7

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

2шт.

8

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.
