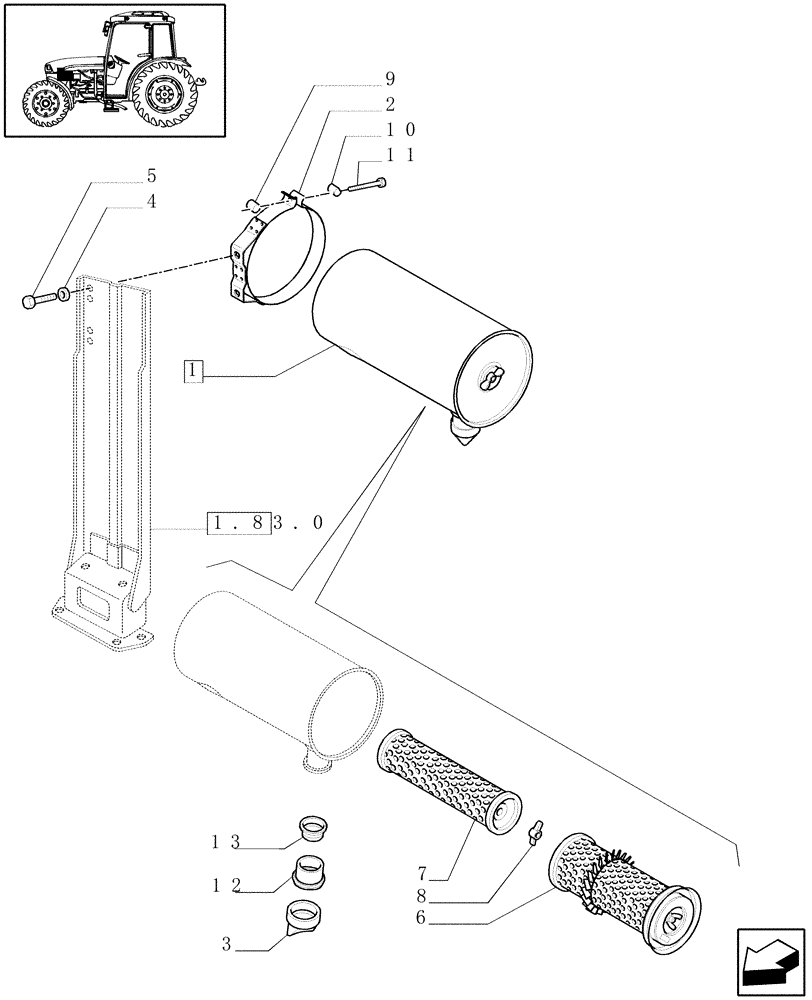

Запчасти Case IH JX1095C (1.19.1[02]) - DRY AIR CLEANER - W/CAB (02) - ENGINE EQUIPMENT

1

47128134

AIR CLEANER

ASSY

1шт.

2

47134826

BRACKET

1шт.

3

87335530

RIGID TUBE

1шт.

4

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

5

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

6

87313626

AIR FILTER

Main

1шт.

7

87313629

AIR FILTER

Safety

1шт.

8

87335528

NUT

1шт.

9

5120754

PIN

1шт.

10

5120755

PIN,16mm OD x 15mm L

1шт.

11

5120756

SCREW

M8 x 1.25 x 65

1шт.

12

87335533

RIGID TUBE

1шт.

13

87335531

RIGID TUBE

1шт.
