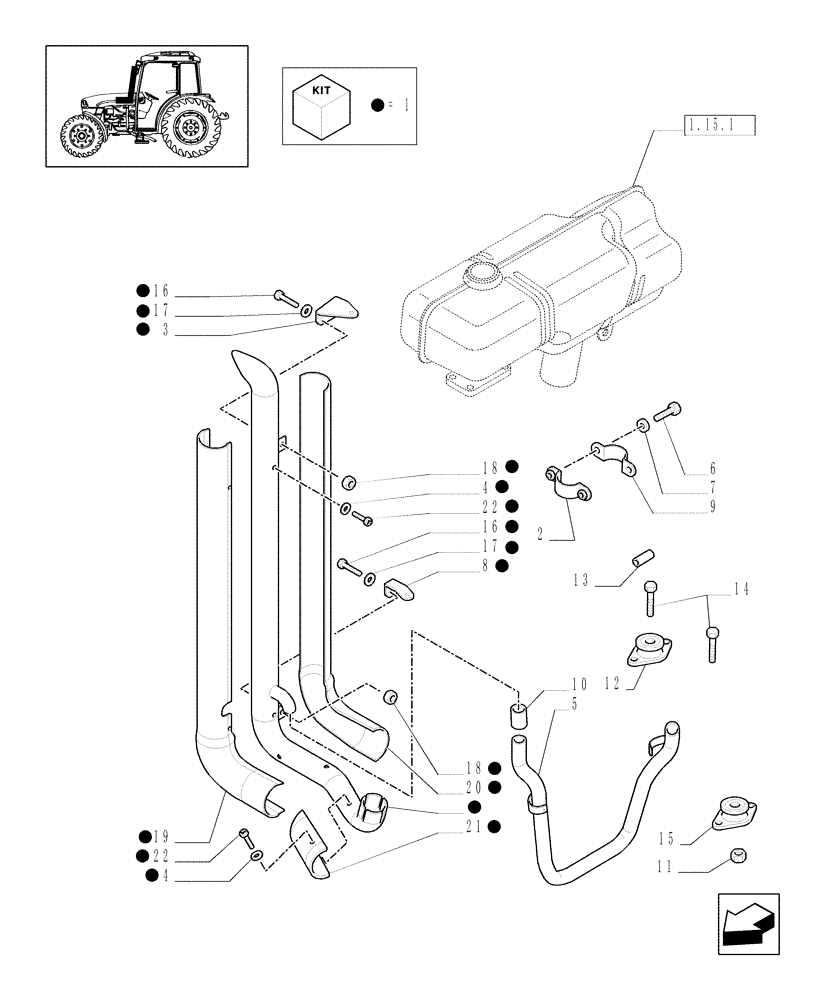

Запчасти Case IH JX1095C (1.15.1/04) - (VAR.504) AIR FILTER DUST EJECTOR W/EXHAUST GUARD SHIELD FOR "A" PILLAR - SILENCER (MUFFLER) - C5177 (02) - ENGINE EQUIPMENT

1

87310449

MUFFLER

ASSY

1шт.

2

5180679

HOSE CLIP

1шт.

3

87310289

ANGLE BAR

1шт.

4

13550201

WASHER,6.15mm ID x 13mm OD x 1mm Thk

M6.15 x 13 x 1

10шт.

5

87344419

RIGID TUBE

M8x1.25

4шт.

6

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

4шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

8

47057692

ANGLE BAR

1шт.

9

5183964

HOSE CLIP

1шт.

10

87313305

RIGID TUBE

D=33, 73.50 MM

1шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

8шт.

12

47056714

SILENTBLOC

2шт.

13

47056716

RIGID TUBE

2шт.

14

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

2шт.

15

47056715

SILENTBLOC

2шт.

16

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

17

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

18

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

19

87310452

SHIELD

1шт.

20

87310451

SHIELD

1шт.

21

47057693

SHIELD

1шт.

22

47057252

HEX SOC SCREW

8шт.
