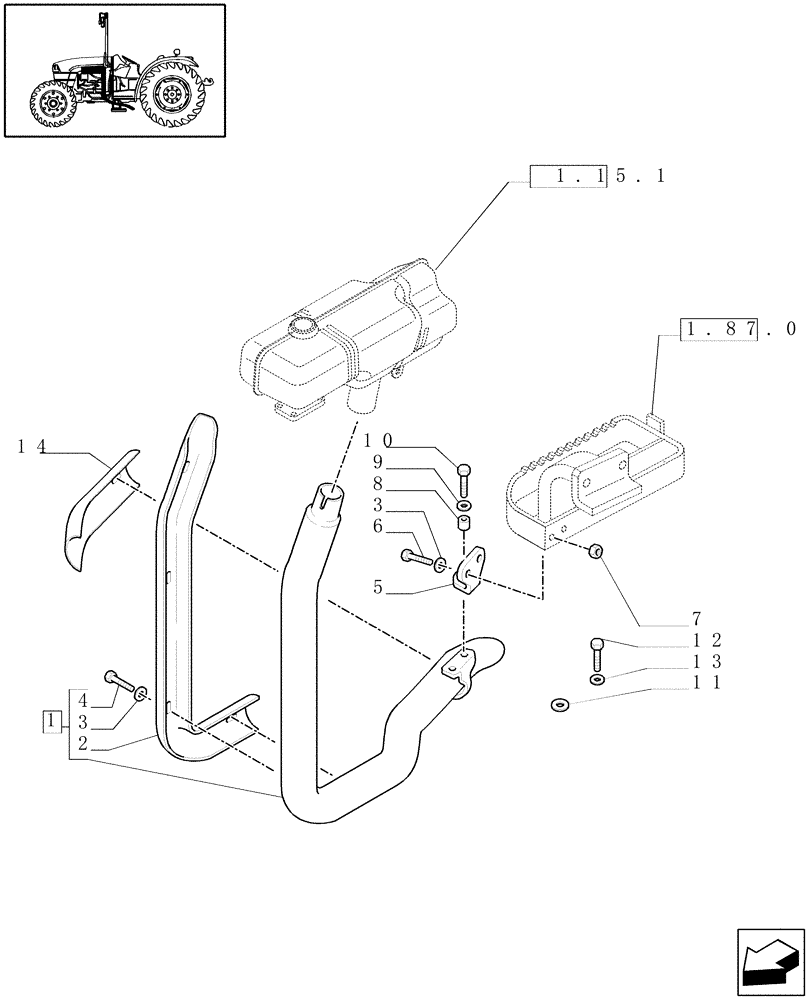

Запчасти Case IH JX1095C (1.15.1/03) - (VAR.150) HORIZONTAL EXHAUST WITH GUARD SHIELD - SILENCER AND GUARD (02) - ENGINE EQUIPMENT

1

87309120

EXHAUST SYSTEM PIPE

ASSY

1шт.

2

87309124

SHIELD

1шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

7шт.

4

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

5шт.

5

87309125

BRACKET

1шт.

6

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

8

87310431

SPACER

8.5x18x12

1шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

10

16043634

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

12

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

13

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

14

84293305

GUARD

, Start Serial: D6508

1шт.
