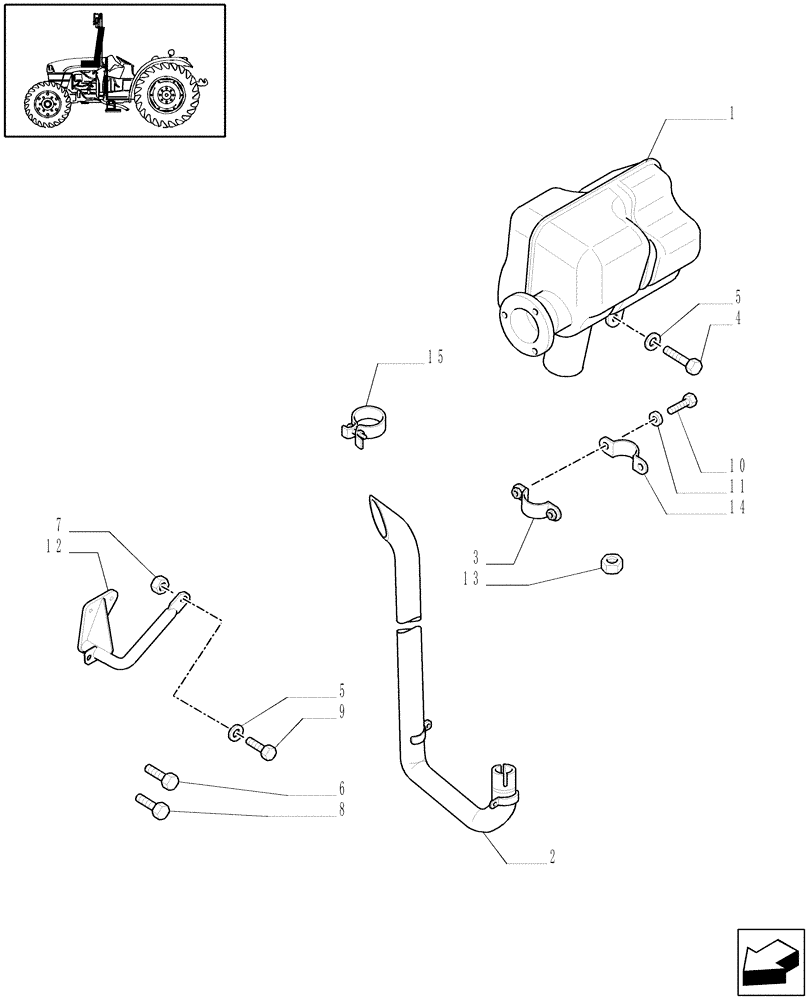

Запчасти Case IH JX1095C (1.15.1[02]) - SILENCER (MUFFLER) (02) - ENGINE EQUIPMENT

1

87388180

MUFFLER

1шт.

2

47135796

EXTENSION

1шт.

3

5180679

HOSE CLIP

1шт.

4

16043334

BOLT,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd

1шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

10шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

43362

NUT,M8 x 1.25, Cl 10

1шт.

8

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

, Serial Range: -C5751

2шт.

12

87314794

BRACKET

, Serial Range: -C5751

1шт.

13

5118186

FLANGE NUT

M8x1.25

4шт.

14

5183964

HOSE CLIP

, Serial Range: -C5751

1шт.

15

87667303

HOSE CLAMP,58mm - 58.5mm

, Start Serial: D5751

1шт.
