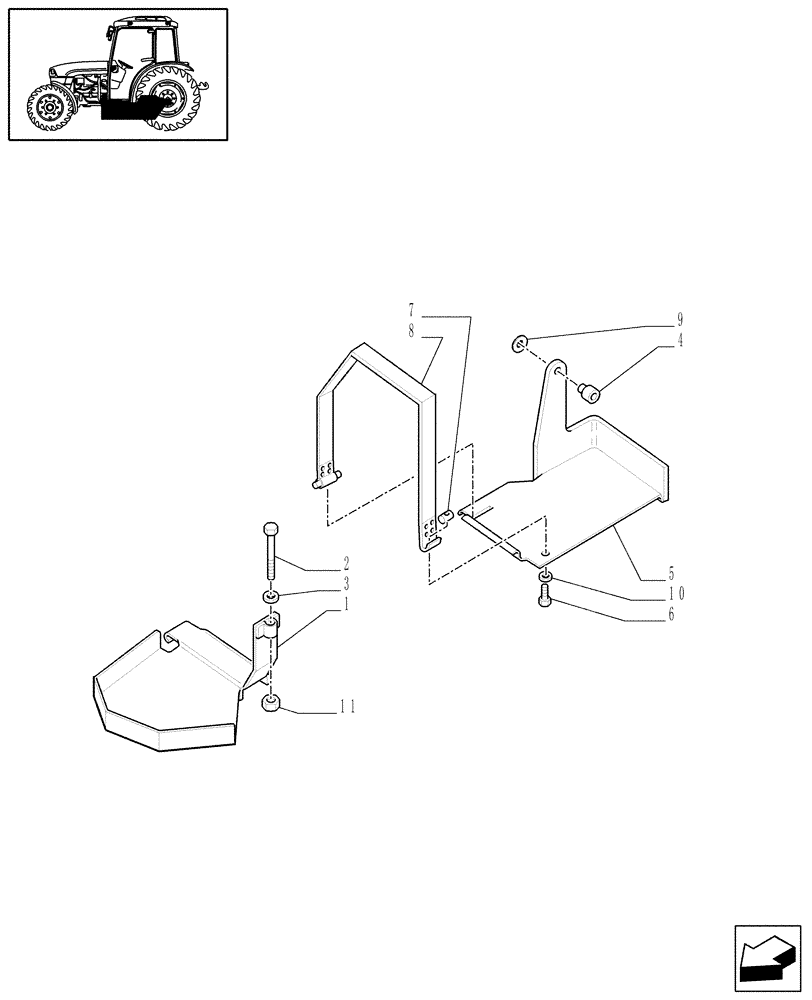

Запчасти Case IH JX1085C (1.14.7[01A]) - FUEL TANK SUPPORT - D5540 (02) - ENGINE EQUIPMENT

1

87305634

SUPPORT

1шт.

2

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

1шт.

3

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

4

5180044

BUSHING

JX1085C

1шт.

4

5180029

BUSHING

JX1095C

1шт.

5

87607796

SUPPORT

1шт.

6

15213724

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

1шт.

7

5120755

PIN,16mm OD x 15mm L

1шт.

8

5186341

SECURING STRAP,945mm L

1шт.

9

5183917

WASHER

14.5x38

1шт.

10

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

11

12164721

NUT,M10 x 1.25, Cl 10

1шт.
