Запчасти Case IH JX1085C (719124070[09]) - (DIA KIT) TWO MID-MOUNT KIT (1 S/D+1 S/D WITH FLOAT) W/ JOYSTICK & #4 QUICK COUPLERS (18) - VARIATIONS

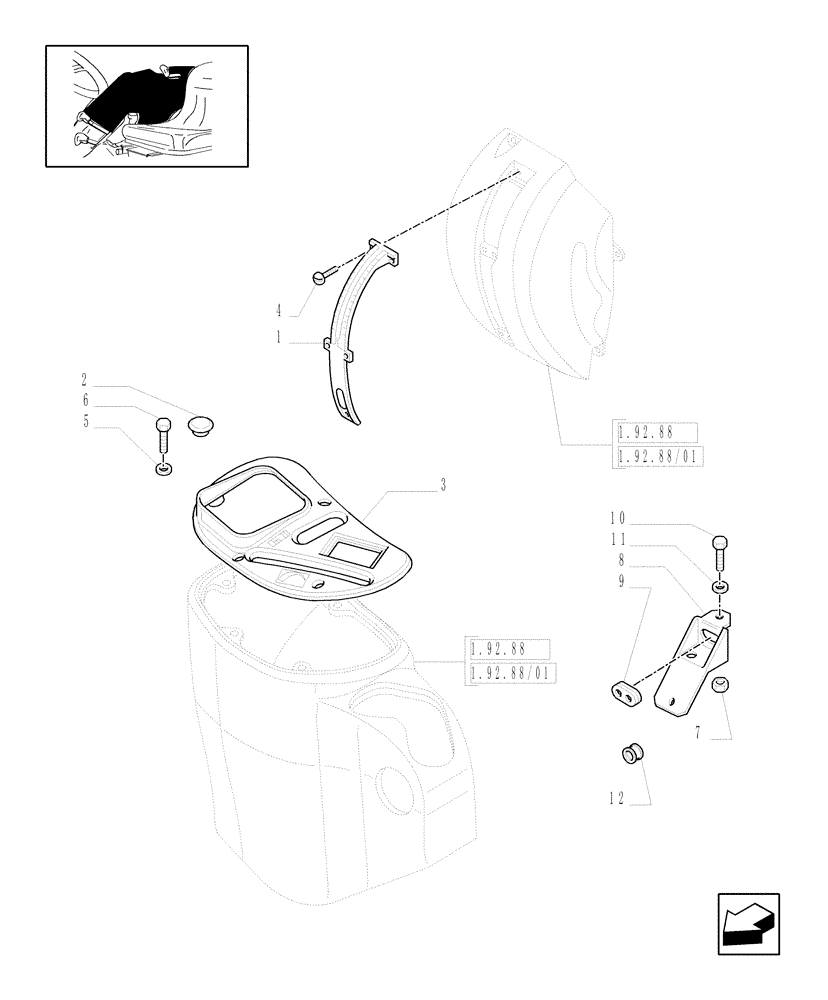

Схема запчастей Case IH JX1085C - (719124070[09]) - (DIA KIT) TWO MID-MOUNT KIT (1 S/D+1 S/D WITH FLOAT) W/ JOYSTICK & #4 QUICK COUPLERS (18) - VARIATIONS
4
7
6
1.92.88
1.92.88/01
3
9
2
8
10
1.92.88
1
5
11
1.92.88/01
12

Артикул

Название

Примечание

Количество

1

47128148

SECTOR

TOOTHED SECTOR

1шт.

2

5155362

PLUG,17mm

D=17

1шт.

3

5177551

COVER

1шт.

4

15958704

SELF-TAP SCREW,Pan HD, M5 x 12mm

5шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

8

5185186

BRACKET

1шт.

9

5185278

INSULATING RING

1шт.

10

13279177

SCREW,Pozidriv Pan Hd, M8 x 14mm

1шт.

10

13279277

SCREW,Pozidriv Pan Hd, M8 x 16mm, Full Thd

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

10

16045024

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

1шт.

11

13578478

WASHER,8.15mm ID x 36mm OD x 2.5mm Thk

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

11

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

11

12646778

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

12

10397480

GROMMET,14mm ID x 20mm Groove D x 27mm OD

1шт.

Выбрано товаров: 18
