(719124070[04]) - (DIA KIT) TWO MID-MOUNT KIT (1 S/D+1 S/D WITH FLOAT) W/ JOYSTICK & #4 QUICK COUPLERS

Запчасти Case IH JX1085C (719124070[04]) - (DIA KIT) TWO MID-MOUNT KIT (1 S/D+1 S/D WITH FLOAT) W/ JOYSTICK & #4 QUICK COUPLERS (18) - VARIATIONS

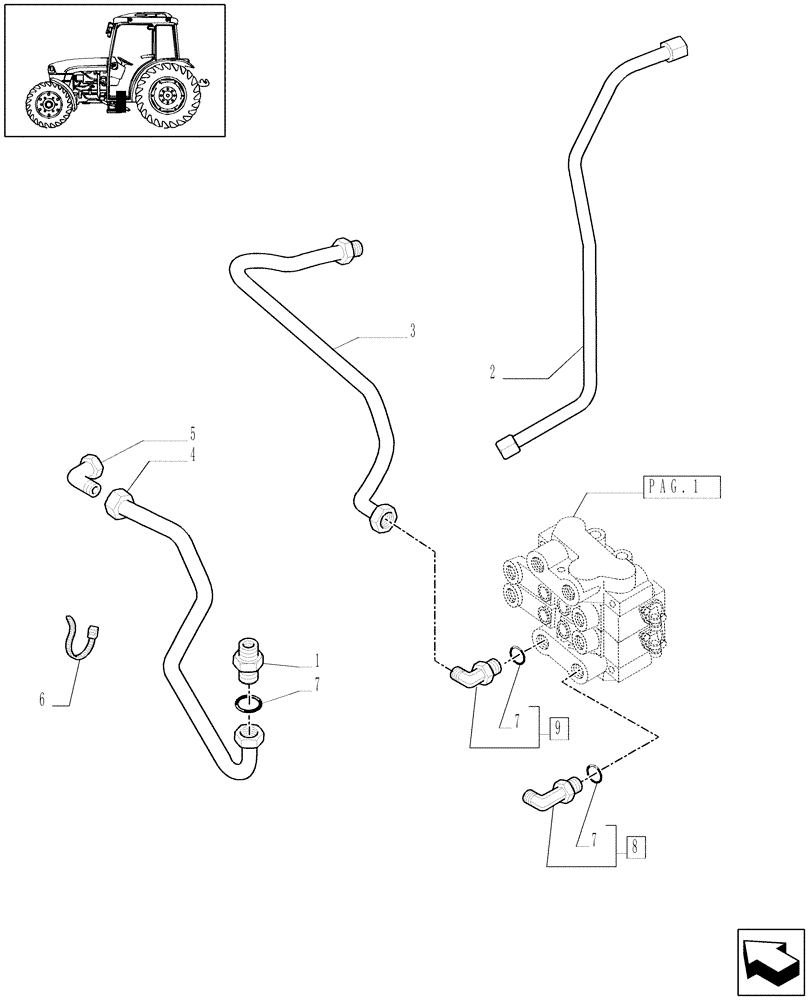

Схема запчастей Case IH JX1085C - (719124070[04]) - (DIA KIT) TWO MID-MOUNT KIT (1 S/D+1 S/D WITH FLOAT) W/ JOYSTICK & #4 QUICK COUPLERS (18) - VARIATIONS
7
7
3
8
2
9
1
4
6
pag.1
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1.5

1шт.

2

47130285

RIGID TUBE

1шт.

3

47126969

RIGID TUBE

1шт.

4

87312679

RIGID TUBE

1шт.

5

47128974

HYD CONNECTOR

1шт.

6

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70-90

1шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

8

47128049

HYD CONNECTOR

1шт.

9

5148919

ELBOW

M22x1.5, 1-1/16"-12

1шт.
