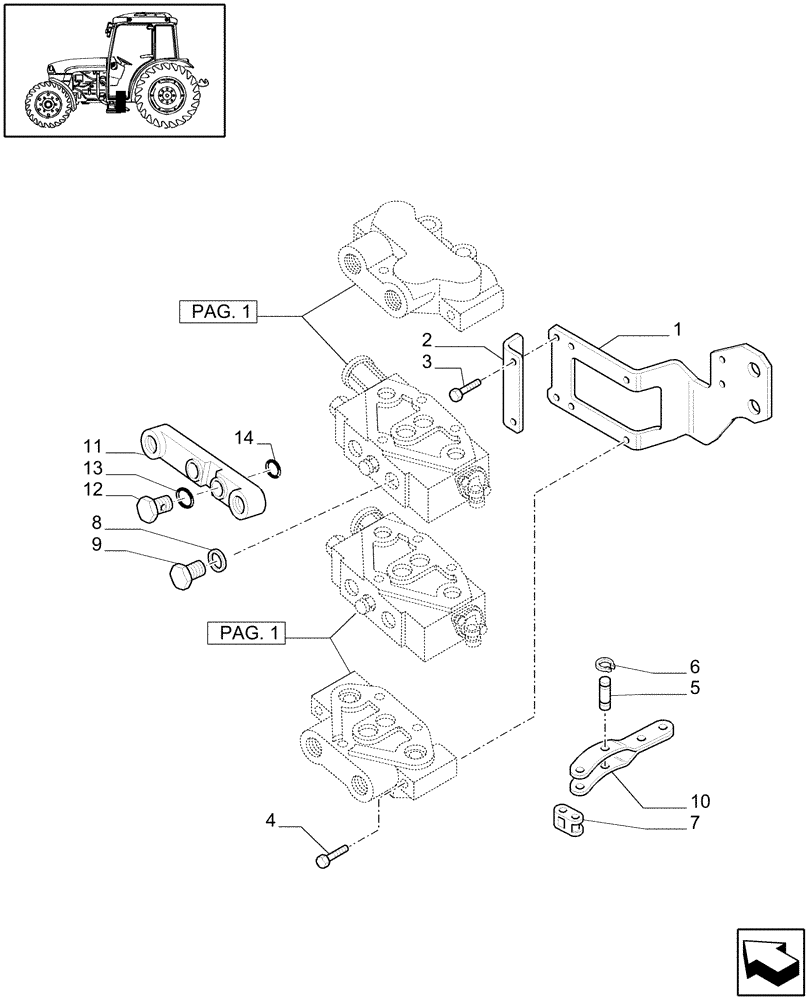

Запчасти Case IH JX1085C (719124070[02]) - (DIA KIT) TWO MID-MOUNT KIT (1 S/D+1 S/D WITH FLOAT) W/ JOYSTICK & #4 QUICK COUPLERS (18) - VARIATIONS

1

47127200

BRACKET

1шт.

2

47126456

BRACKET

1шт.

3

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

4

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

5

5172456

PIN,6mm OD x 20mm L

2шт.

6

11087776

CIRCLIP,Ext., M6, BLO

2шт.

7

5116896

LINK,19.05mm Pitch

2шт.

8

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24x1.5

4шт.

9

10300840

PLUG

M18x1.5

4шт.

9

10118840

PLUG,M22 x 1.5 x 18, Brass

4шт.

10

5178877

CLEVIS

2шт.

11

5185533

HYD CONNECTOR

2шт.

12

5168481

BANJO BOLT,M18 x 1.5 x 38mm

4шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

14

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

4шт.
