(719108040[03]) - (DIA KIT) 2ND REMOTE S/D W/KICK-OUT & FLOAT + DELUXE COUPLERS

Запчасти Case IH JX1085C (719108040[03]) - (DIA KIT) 2ND REMOTE S/D W/KICK-OUT & FLOAT + DELUXE COUPLERS (18) - VARIATIONS

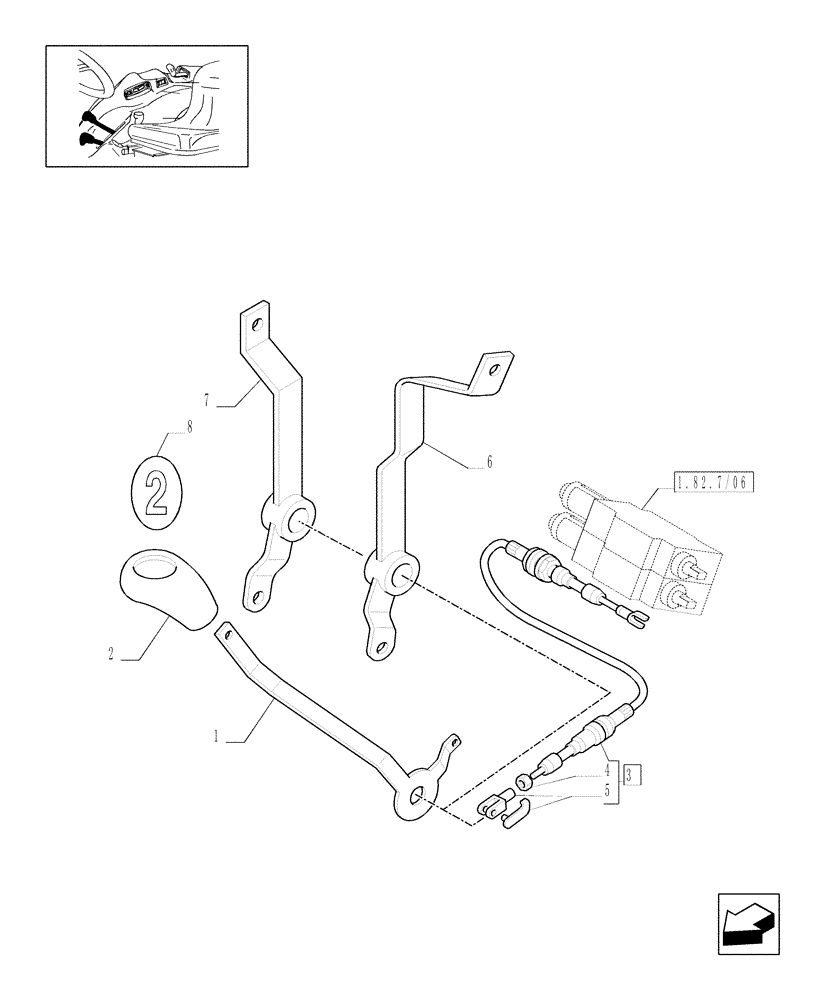

Схема запчастей Case IH JX1085C - (719108040[03]) - (DIA KIT) 2ND REMOTE S/D W/KICK-OUT & FLOAT + DELUXE COUPLERS (18) - VARIATIONS
6
5
8
3
1.82.7/06
7
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5175512

LEVER

2nd Distrib.

1шт.

L/Mid Mount Valves

1шт.

2

47056482

KNOB

1шт.

3

5175517

CABLE

1st-2nd Distrib.

1шт.

3

5199209

CABLE,900mm L

3rd Distrib.

1шт.

4

9971642

NUT

1шт.

5

9971641

YOKE

1шт.

6

47127677

LEVER

1st-4th Distrib.

1шт.

W/Mid Mount Valves

1шт.

7

47128519

LEVER

2nd-4th Distrib.

1шт.

8

47057200

IDEOGRAM

1шт.

Выбрано товаров: 11
