(719108040[02]) - (DIA KIT) 2ND REMOTE S/D W/KICK-OUT & FLOAT + DELUXE COUPLERS

Запчасти Case IH JX1085C (719108040[02]) - (DIA KIT) 2ND REMOTE S/D W/KICK-OUT & FLOAT + DELUXE COUPLERS (18) - VARIATIONS

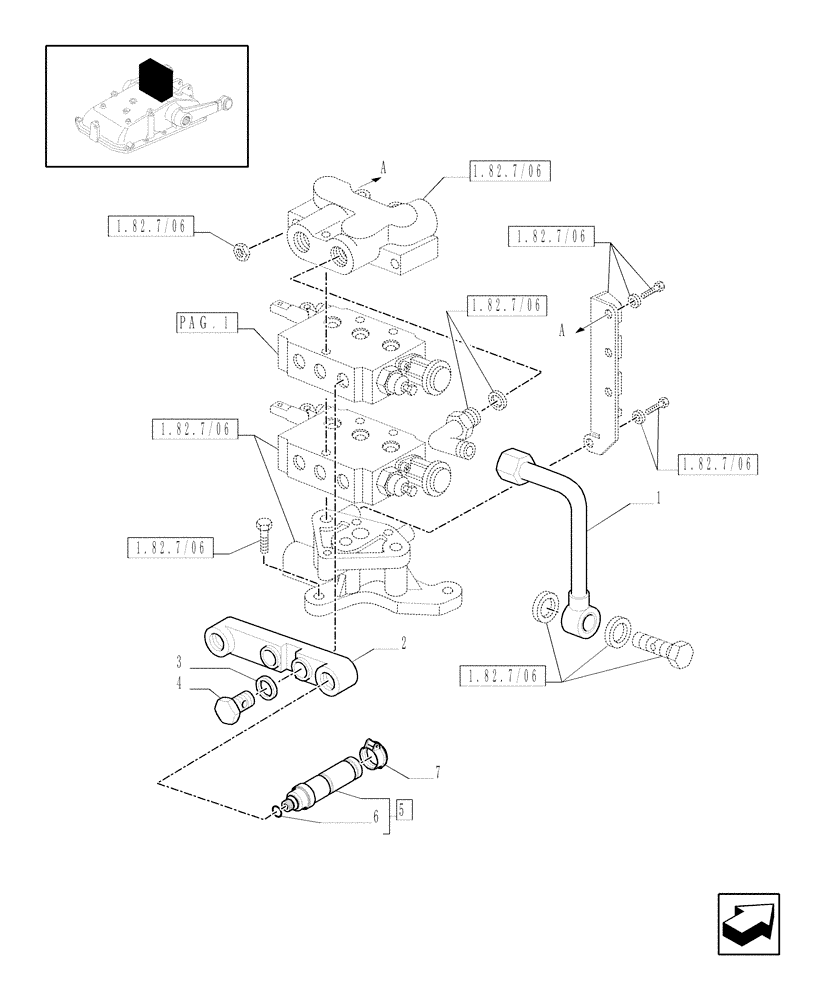

Схема запчастей Case IH JX1085C - (719108040[02]) - (DIA KIT) 2ND REMOTE S/D W/KICK-OUT & FLOAT + DELUXE COUPLERS (18) - VARIATIONS
2
a
4
a
1.82.7/06
1.82.7/06
1.82.7/06
1.82.7/06
1
1.82.7/06
p
.
1
6
5
1.82.7/06
g
a
1.82.7/06
1.82.7/06
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5173694

RIGID TUBE

1шт.

2

5185533

HYD CONNECTOR

1шт.

3

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

2шт.

5

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

7

47132127

DUST CAP,Blue

2шт.
