(719044030[03]) - (DIA KIT) 4TH REMOTE S/D W/ DELUXE COUPLERS

Запчасти Case IH JX1085C (719044030[03]) - (DIA KIT) 4TH REMOTE S/D W/ DELUXE COUPLERS (18) - VARIATIONS

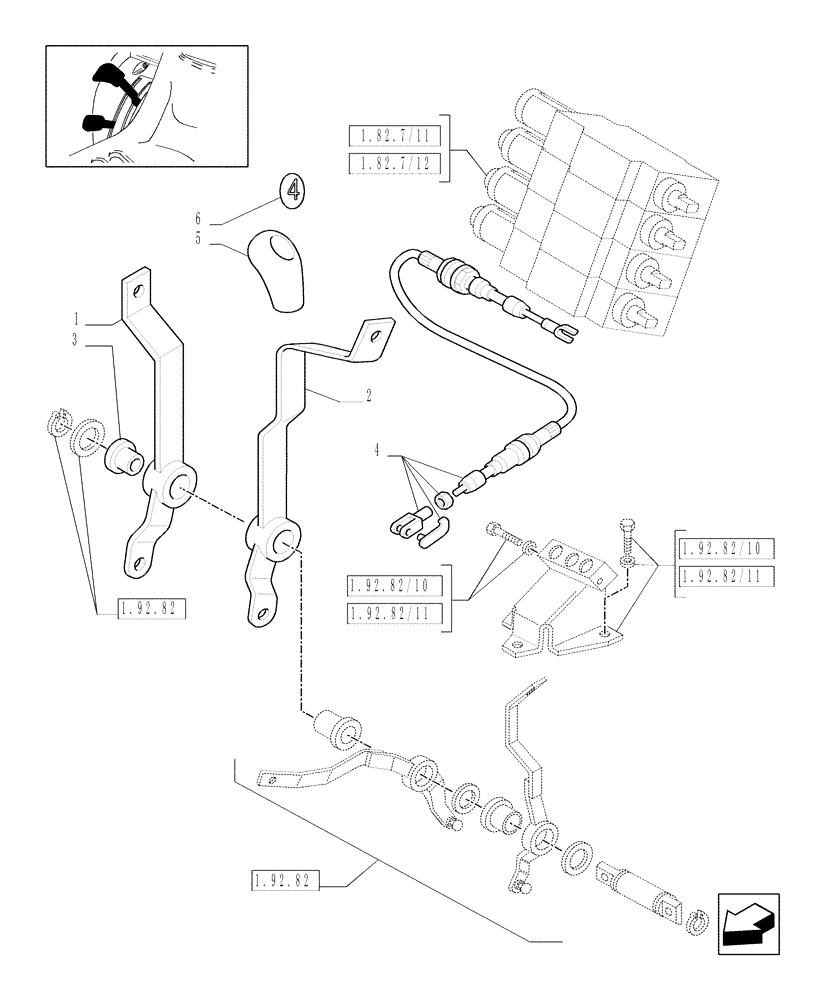

Схема запчастей Case IH JX1085C - (719044030[03]) - (DIA KIT) 4TH REMOTE S/D W/ DELUXE COUPLERS (18) - VARIATIONS
3
6
1.82.7/12
1.92.82/10
1.92.82/11
4
1.92.82/10
1.92.82
1.92.82
1.92.82/11
1.82.7/11
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47128519

LEVER

2nd-4th Distr. for EDC

1шт.

2

47127677

LEVER

1st-4th Distr. for MDC

1шт.

3

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

21x27x22

1шт.

4

5199209

CABLE,900mm L

1шт.

5

47056482

KNOB

Black for MDC

1шт.

6

47057202

EMBLEM

1шт.
