(719044030[01]) - (DIA KIT) 4TH REMOTE S/D W/ DELUXE COUPLERS

Запчасти Case IH JX1085C (719044030[01]) - (DIA KIT) 4TH REMOTE S/D W/ DELUXE COUPLERS (18) - VARIATIONS

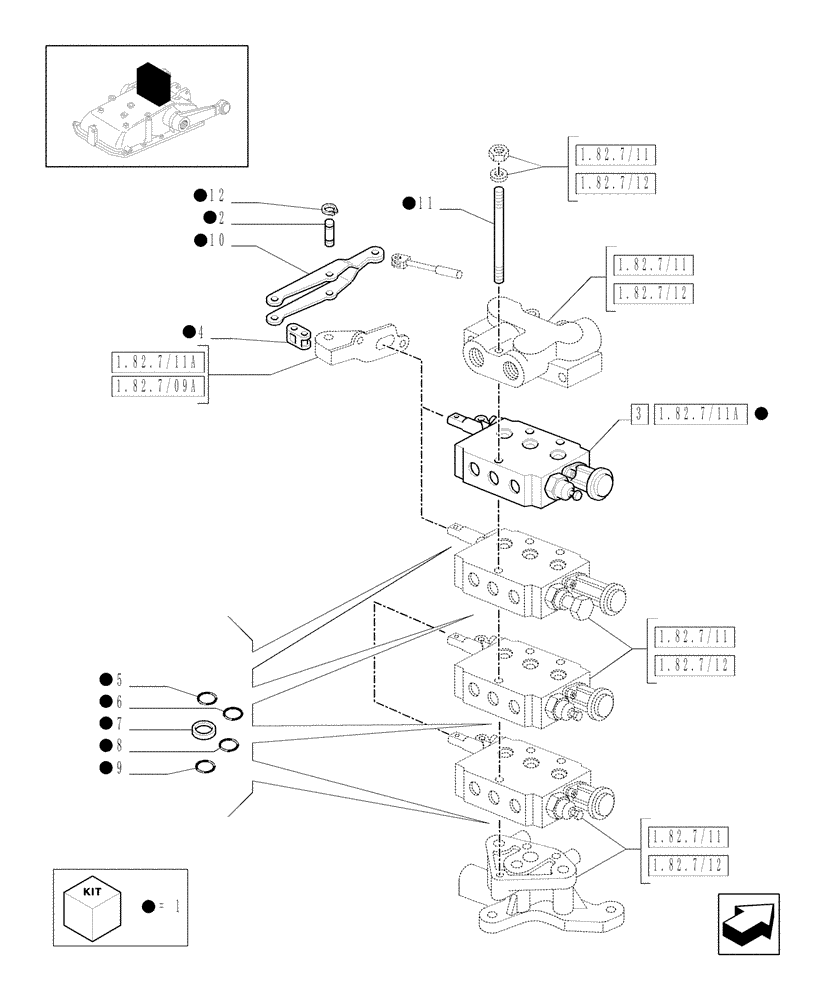

Схема запчастей Case IH JX1085C - (719044030[01]) - (DIA KIT) 4TH REMOTE S/D W/ DELUXE COUPLERS (18) - VARIATIONS
1
1
5
4
12
1.82.7/11a
3
7
1
1
6
2
1
1.82.7/12
1
9
1.82.7/11a
1.82.7/12
1.82.7/11
1
11
10
1
1
8
1.82.7/11
1.82.7/09a
1
1.82.7/12
1
1
1.82.7/11
1.82.7/11
1.82.7/12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5185039

CONTROL VALVE

1шт.

2

5172456

PIN,6mm OD x 20mm L

1шт.

3

5171282

CONTROL VALVE

ASSY

1шт.

S/D w/Kickout & Float

1шт.

4

5116896

LINK,19.05mm Pitch

1шт.

5

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

D=18.72

3шт.

6

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

D=19.2

1шт.

7

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

3шт.

10

5178183

CLEVIS

1шт.

11

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

12

11087776

CIRCLIP,Ext., M6, BLO

2шт.
