(710471120) - (DIA KIT) REAR BALLAST (4 RINGS 50 KG. EACH)

Запчасти Case IH JX1085C (710471120) - (DIA KIT) REAR BALLAST (4 RINGS 50 KG. EACH) (18) - VARIATIONS

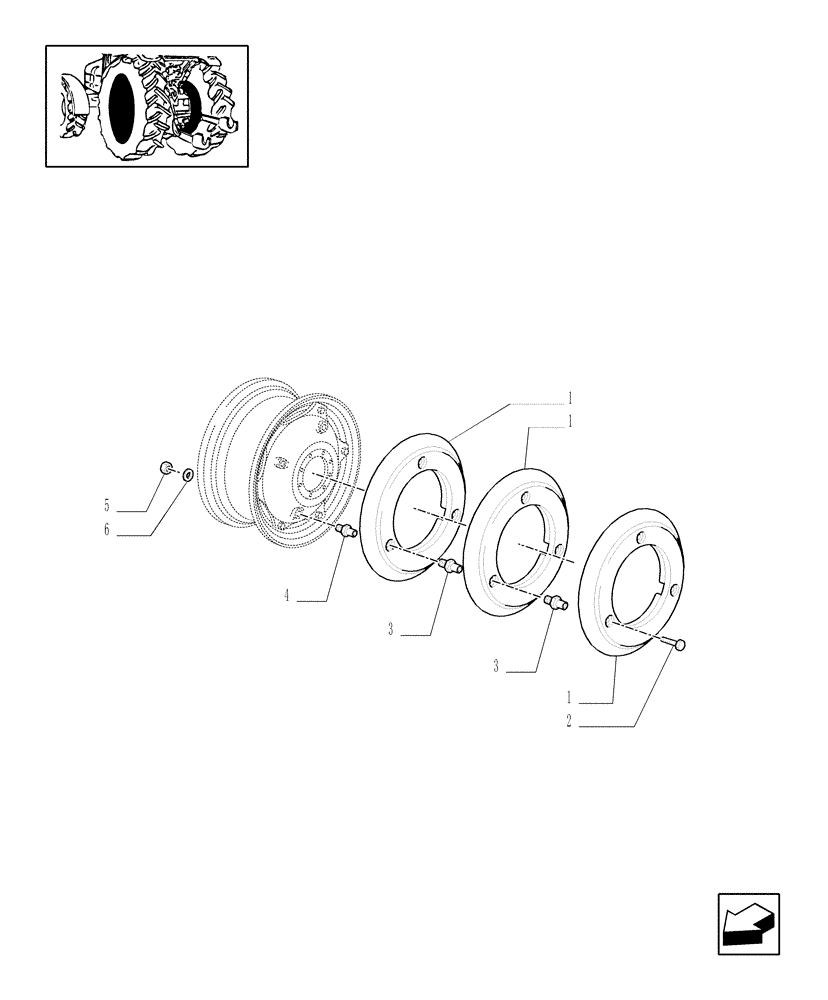

Схема запчастей Case IH JX1085C - (710471120) - (DIA KIT) REAR BALLAST (4 RINGS 50 KG. EACH) (18) - VARIATIONS
1
1
1
4
3
6
3
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47131052

WHEEL WEIGHT,50Kg/110Lb

4шт.

3 bolts on circle =410mm.

1шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

M16x1.5x78

6шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

M16x1.5x60

6шт.

5

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

M16x1.5

6шт.

6

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.
