(710465060) - (DIA KIT) REAR BALLAST (6 RINGS 32 KG. EACH) FOR 24" WHEELS

Запчасти Case IH JX1085C (710465060) - (DIA KIT) REAR BALLAST (6 RINGS 32 KG. EACH) FOR 24" WHEELS (18) - VARIATIONS

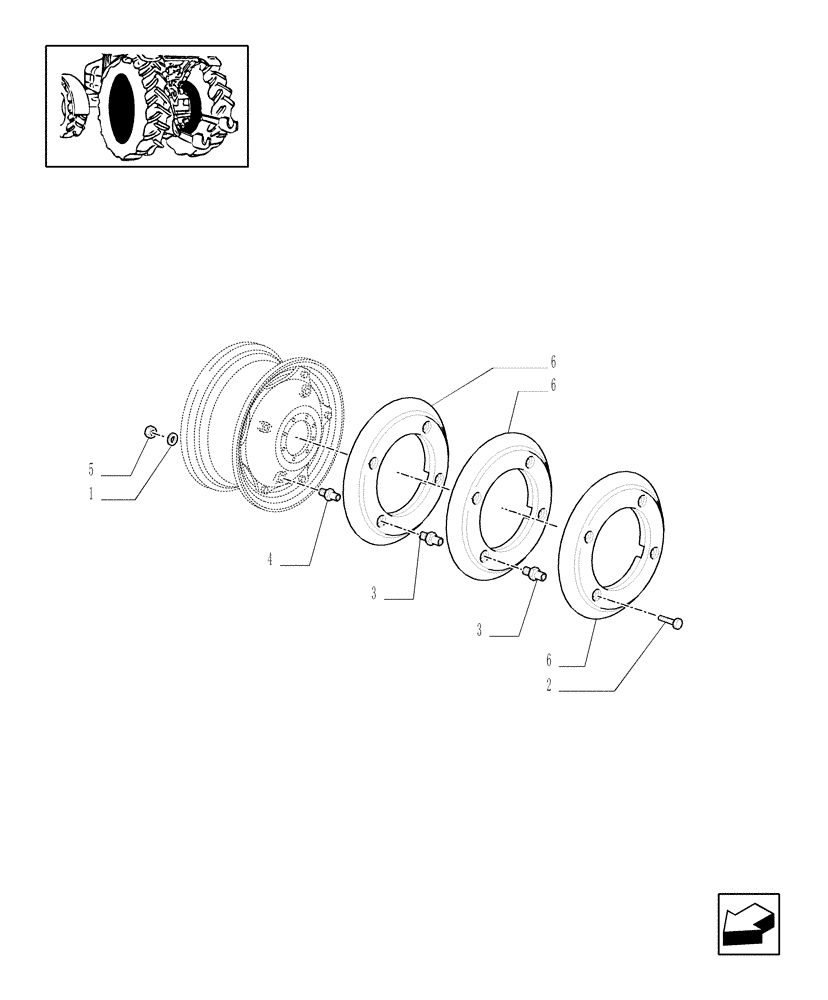

Схема запчастей Case IH JX1085C - (710465060) - (DIA KIT) REAR BALLAST (6 RINGS 32 KG. EACH) FOR 24" WHEELS (18) - VARIATIONS
5
4
3
6
2
6
6
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

8шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

M16x1.5x78

16шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

M16x1.5x60

8шт.

5

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

M16x1.5

8шт.

6

47131265

WHEEL DISC,330mm Dia, 4 Bolts, CNH Dark Grey

6шт.

4 bolts on circle =330mm .

1шт.
