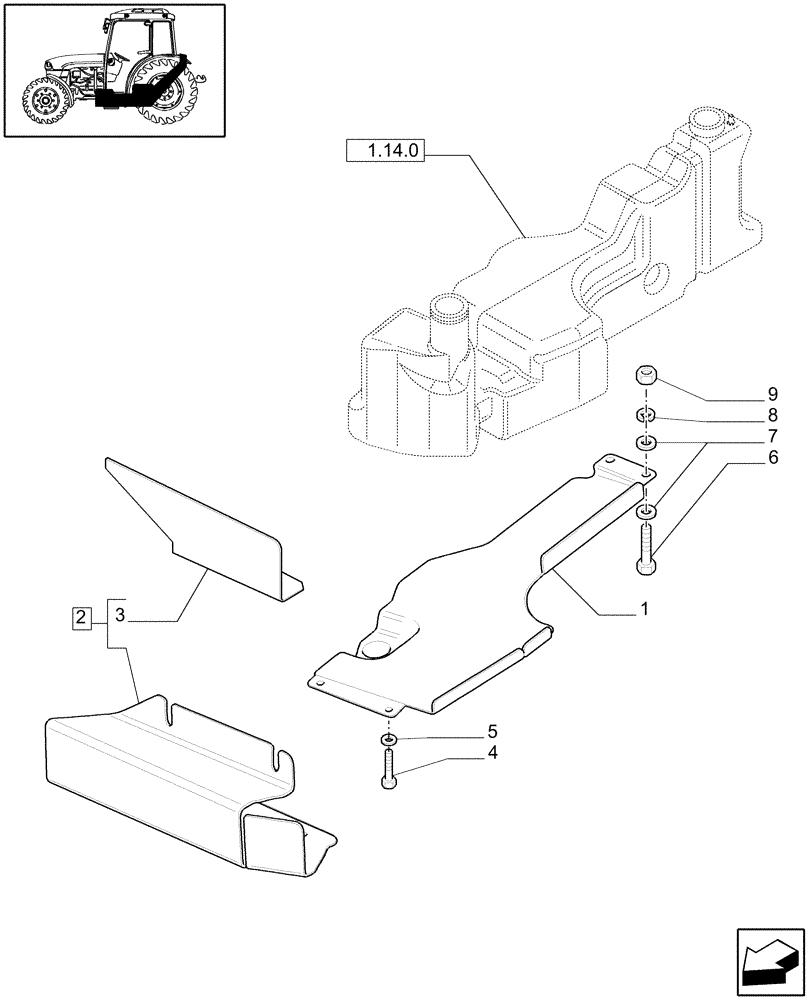

Запчасти Case IH JX1085C (1.14.0/03) - (VAR.208) FUEL TANK SHIELD PROTECTION - GUARD (02) - ENGINE EQUIPMENT

1

47130644

PLATE

1шт.

2

47128642

SHIELD

1шт.

3

47128645

GUARD

1шт.

4

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

8

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

4шт.

9

16100814

NUT,M8, Cl 8, DAC

2шт.
