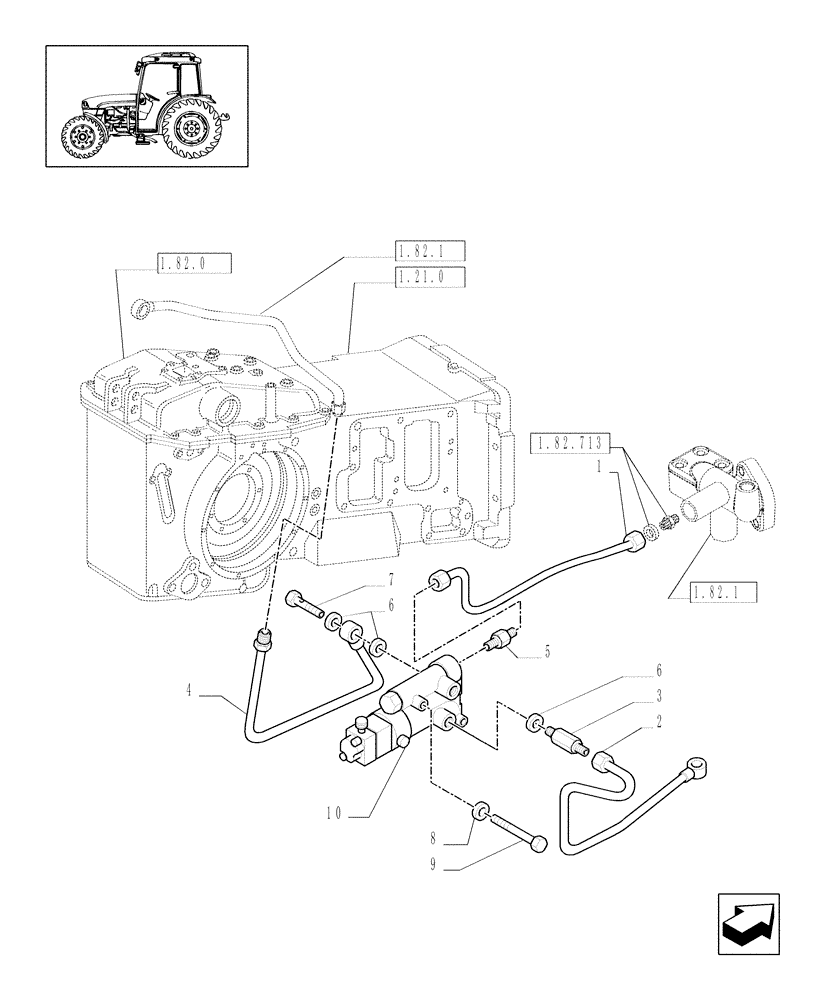

Запчасти Case IH JX1085C (710370530[01]) - (DIA KIT) TRAILER BRAKE VALVE (FRANCE) (18) - VARIATIONS

1

87309269

RIGID TUBE

1шт.

2

5180615

RIGID TUBE

1шт.

3

5174654

SPACER,M18 x 1.5 NPT x 3/4" - 16

1шт.

4

5180483

RIGID TUBE

1шт.

5

5155665

HYD CONNECTOR

1шт.

6

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

3шт.

7

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

8

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

2шт.

9

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

10

47132616

HYDRAULIC VALVE

ASSY

1шт.
