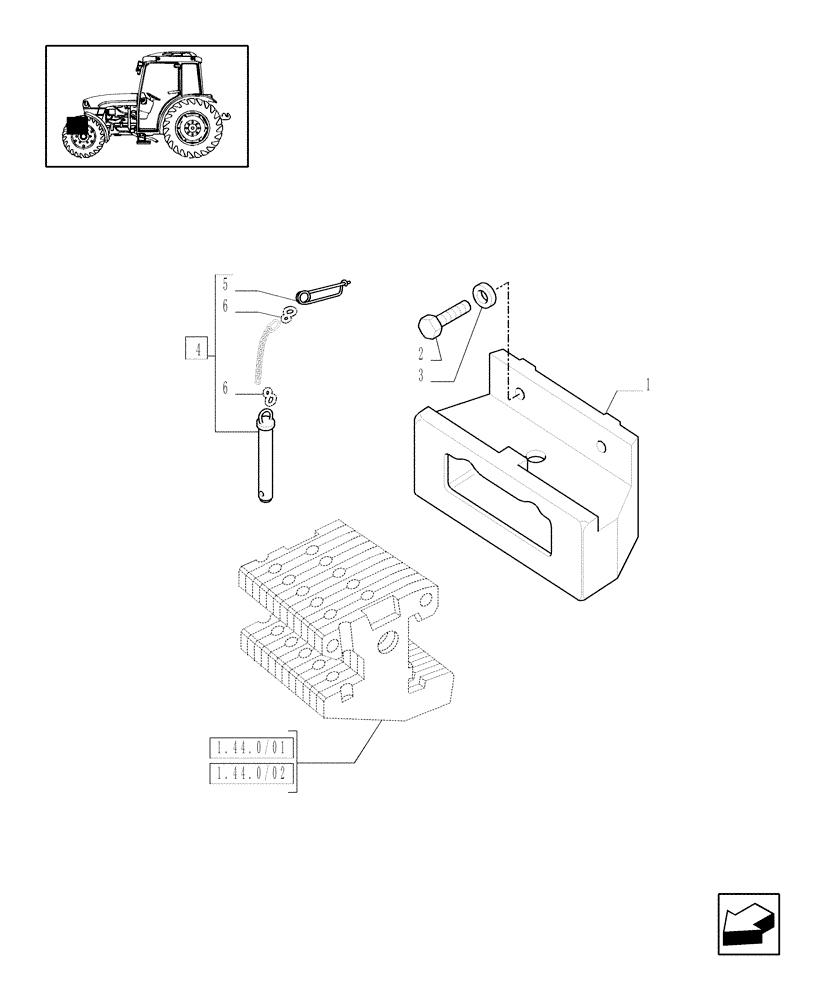

Запчасти Case IH JX1085C (710225290) - (DIA KIT) FRONT WEIGHT CARRIER ( 60 KG.) (18) - VARIATIONS

1

47123848

SUPPORT

1шт.

2

11125131

BOLT,Hex, M20 x 70, 10.9

4шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

20x38x4.6

4шт.

4

5184442

PIN,30mm OD

ASSY

1шт.

5

5152004

HAIR PIN COTTER,195mm L

1шт.

6

44901192

SNAP RING,25mm ID

2шт.
